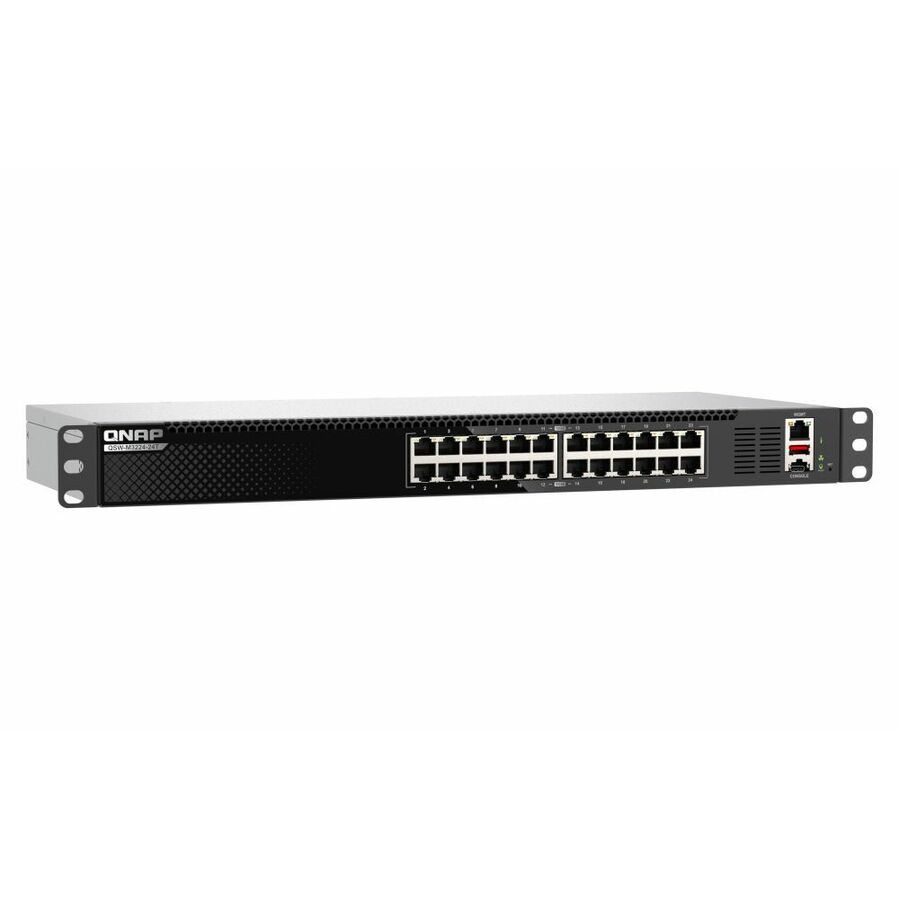

QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
Easier AV-over-IP configuration
Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.
User-friendly management interface
QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
Scalability
When scaling your network, more network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.
High-performance
High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.
Security
Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.
Enterprise IP routing, network high availability and high-performance demands
IP routing
Forwards packets through IP addresses to enable communication between devices in different network segments, or efficiently connect between different segments and subnets to achieve more complicated network segments based on functions.
MC-LAG network redundancy
Combines multiple connections between switches into a single, logical link. This logical link provides high availability and redundancy for client devices as it can continue to function even if one or more of the physical links fail.
LACP
Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can u
- Layer 3 Switch provides dependable and powerful connectivity for maximum usability
- Quickly and easily set up a wired network with 24 networking ports
- Supports layer 3 switching for enhanced performance and usability
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 116.90 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| High Availability Supported | Yes |
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Frequency | 60 Hz |
| Manufacturer | QNAP Systems |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x 1 Gigabit Ethernet RJ-45 Management Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
