QSW-M3212R-8S4T
Half-width rackmount full 10GbE L2 managed switch for SMB/SOHO high-speed networks

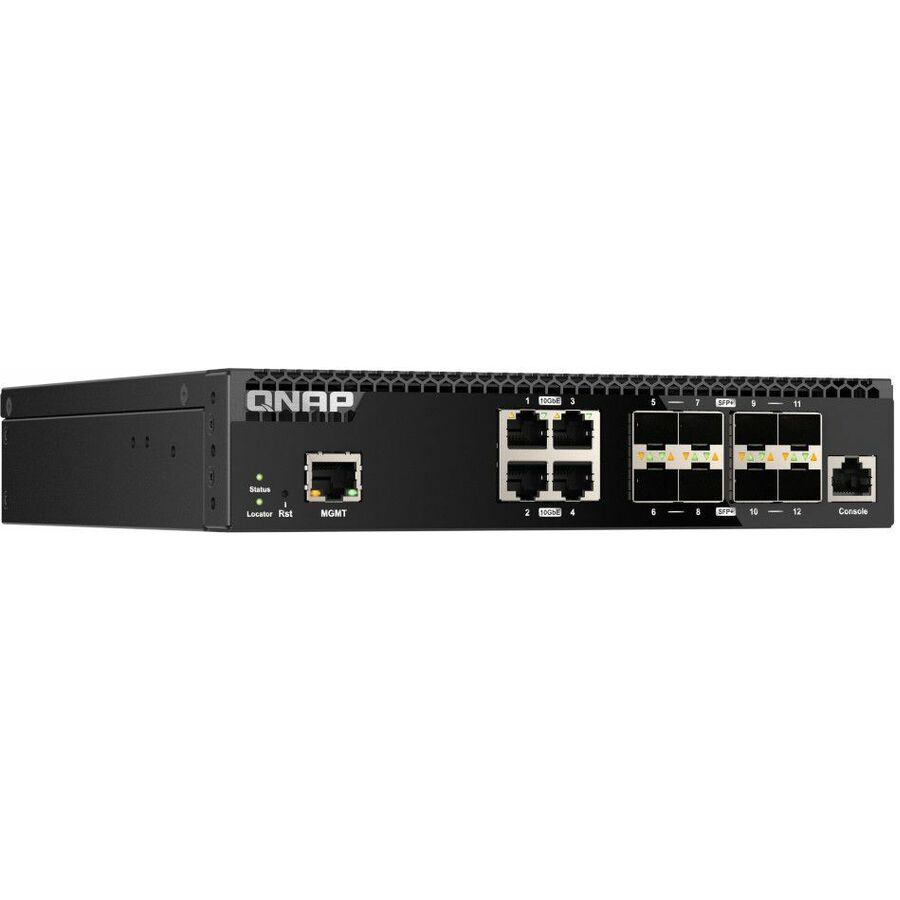

The QSW-M3212R-8S4T is a half-width rackmount managed switch with eight 10GbE SFP+ ports and four 10GbE RJ45 ports, providing SMB and SOHO users with additional ports for connecting 10GbE devices with different interfaces at an affordable price. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M3212R-8S4T offers flexible deployment in high-speed network environments and provides an entry-level network management solution. With a half-width design, the QSW-M3212R-8S4T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space. The QSW-M3212R-8S4T is Made in Taiwan (MIT), providing a high-quality and reliable networking solution.
10G Multi-Gigabit connectivity
Includes eight 10GbE SFP+ fiber ports (backward compatible with 1G SFP) and four 10GbE RJ45 ports (backward compatible with 5G/2.5G/1G) for high-speed networks.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Flow Control
Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M3212R-8S4T avoids packet loss from unparalleled bandwidth.
Half-width design, two models in 1U
With a half-width rackmount design, a QSW-M3212R-8S4T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M2106R-2S2T) for efficient physical space utilization and tidy cabling.
Flexible 12-port 10GbE deployment with eight 10GbE SFP+ and four 10GBASE-T Ethernet
The QSW-M3212R-8S4T provides eight 10GbE SFP+ ports and four 10GbE RJ45 ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M3212R-8S4T is 320Gbps , supporting the full potential of each port.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 32.83 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Frequency | 60 Hz |
| Manufacturer | QNAP Systems |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 8 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 8 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
