Entry-level 10GbE and 2.5GbE Layer 2 Web Managed Half-Width Rackmount Switch for Small Businesses

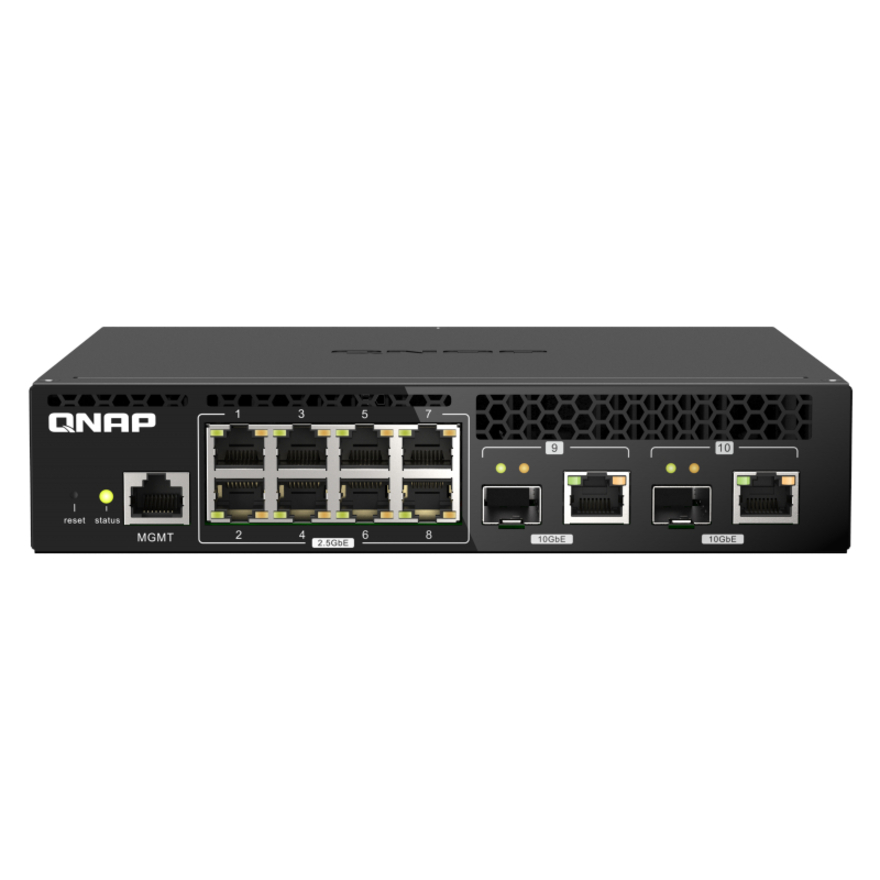

The QSW-M2108R-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108R-2C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2108R-2C can be installed in a 1U rack space for space-saving. The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.
Includes two 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, The QSW-M2108R-2C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
QSS can be updated with just one click, helping IT staff ensure their network security.
Half-width design, 2 models in 1U
With a half-width rackmount design, two QSW-M2108R-2C can be installed in a 1U rack space for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2108R-2C provides two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2C is 80Gbps, guaranteeing the full potential of each port.
Flexible deployment combo ports and 10GbE / NBASE-T
The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Desktop form factor for your convenience and simplicity of usage
- Management capability allows maximum efficiency and with unrestricted control
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Frequency | 60 Hz |
| Manufacturer | QNAP Systems |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet TP/SFP Combo |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
