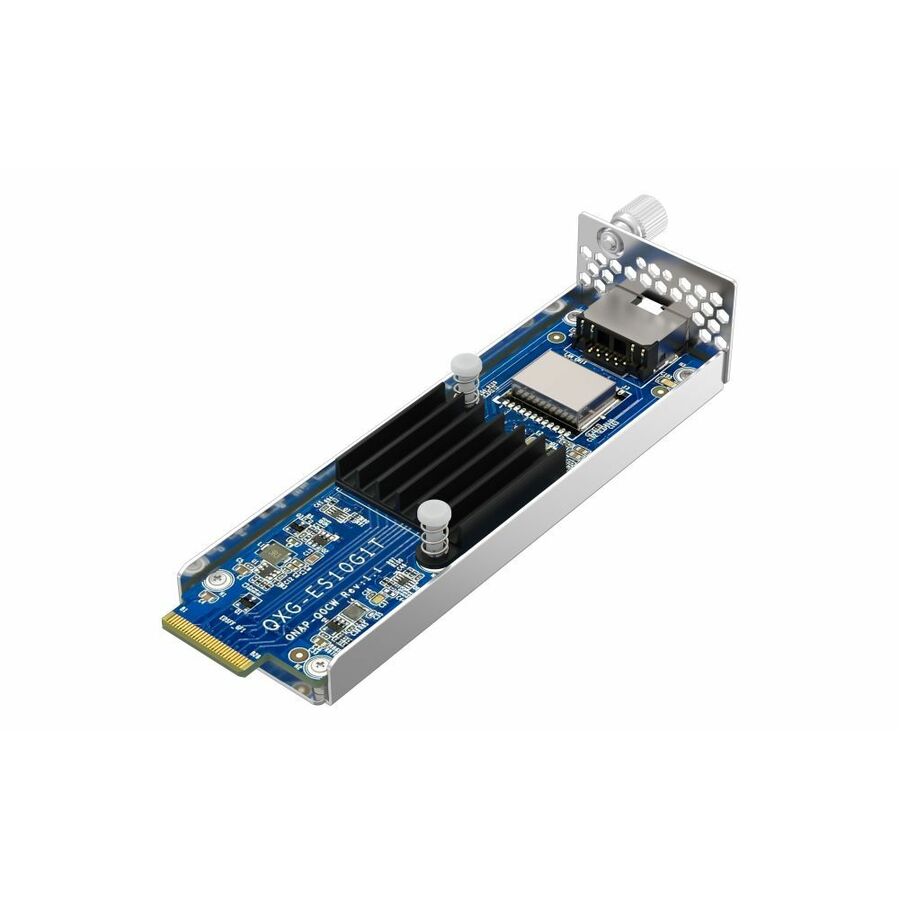

The compact, efficient, and flexible QXG-ES10G1T network expansion module, featuring the Marvell® Scalable mGig AQC113 controller, provides high-speed 10GbE transmission and supports multiple network speeds - offering enterprises more choices for expanding application performance.
5-speed
Supporting 10G/5G/2.5G/1G/100M LAN speeds to meet various network requirements.
PCIe 3.0
PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds.
Hand-screw design
The toolless installation allows you to upgrade network speed effortlessly.
Pioneering E1.S network expansion module
Empowering NAS with 10GbE (10G/5G/2.5G/1G/100M) high-speed transmission with easy installation.
Build a 10GbE network environment
Install the QXG-ES10G1T in your NAS and pair it with QNAP 10GbE switches to create a high-bandwidth network environment and accelerate critical business operations within budget.
Fully unleash your network with a QNAP switch
Build your ideal network environment to satisfy connectivity demands and streamline various storage applications.
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- This single port 10gigabit ethernet card enables you to connect your computer system to your existing network
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Networking & Connectivity | |
|---|---|
| Ethernet Controller Model | AQtion |
| Ethernet Controller Manufactu | Marvell |
| Network Technology | NBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 32 Gbit/s |
| Manufacturer | QNAP Systems |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express 3.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
