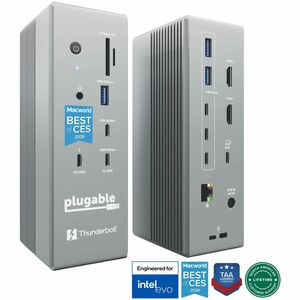

Meet the Plugable TBT-UDH2, a 16-in-1 Windows and Mac docking station with Thunderbolt 5 is built for serious productivity. With 140W host charging, native Dual HDMI 2.1 (up to 8K 60Hz or 4K 144Hz), 6x USB-C ports, including a downstream Thunderbolt 5 port, 2.5Gb Ethernet, and UHS-II SD/microSD readers. This dock delivers next-gen performance without adapters.
Whether you're powering a MacBook Pro M4 or a high-end Windows laptop, the TBT-UDH2 docking station for laptops simplifies your setup with driverless, plug-and-play support and a full port lineup. And it's all in a TAA-compliant design perfect for enterprise, education, or hybrid work.
No dongles. No compromises.
- Power and Performance: The TBT-UDH2 laptop docking station is a 16-in-1 productivity powerhouse with 140W laptop charging, 6x USB-C ports including 2x front-facing 30W charging ports (1x Thunderbolt 5, 1x USB-C), Dual HDMI 2.1 (no adapters needed), 2.5Gbps Ethernet, and UHS-II readers, all in a TAA-compliant, driverless dock built for modern IT and hybrid work setups
- Dual 8K: This Thunderbolt dock's native Dual HDMI 2.1 ports deliver up to 8K 60Hz or 4K 144Hz with Thunderbolt 5 hosts, and dual 4K 120Hz with Thunderbolt 4. No adapters, just pure pixel performance. It's the clean, plug-and-play setup your MacBook Pro or Thunderbolt 5 laptop deserves
- More USB-C Ports (Finally): This Windows and MacBook docking station has 6x USB-C connections, including two front ports that each deliver up to 30W charging (1x Thunderbolt 5, 1x USB-C). Connect everything from SSDs to phones to capture cards. You'll have to USB-C it to believe it
- Works With: Compatible with Thunderbolt 5, Thunderbolt 4, and USB4 systems running Wi
| Brand | |
|---|---|
| Brand | Plugable Technologies |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 2 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K @ 144Hz |
| Supported Resolutions | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Input Voltage Detail | 20 V DC |
| Charging Capability | Yes |
| Input Current | 9 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB Power Delivery | 140W |
| Total Number of USB Ports | 8 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 5 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt 5 Ports | 2 |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Security | |
|---|---|
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 15 GB/s |
| Manufacturer | Plugable Technologies |
| Brand Compatibility | Apple |
| Misc Ports | |
|---|---|
| Total Number of Ports | 16 |
| Host Interface | Thunderbolt 5 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
