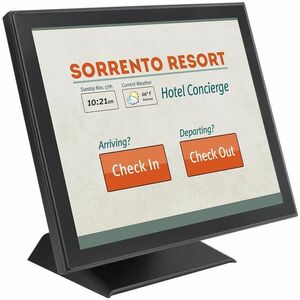

Planar PT1745P 17" Class LED Touchscreen Monitor - 5:4 - 5 ms
Specifications
Core Specs | |
---|---|
Screen Size Class | 17" |
Viewable Screen Size | 17" |
Features | |
---|---|
Features | Cable Lock Slot , Edge-to-Edge Glass Design , On-screen Display (OSD) |
Speakers | Yes |
Multi-touch Screen | Yes |
Touchscreen Type | Projected Capacitive |
Number of Simultaneous Touchpoints | 10 |
Backlight Technology | Edge LED |
Stand Adjustments | Tilt |
Ports & Connectors | |
---|---|
USB | Yes |
HDMI | Yes |
DisplayPort | Yes |
VGA | Yes |
Dimensions & Physical Attributes | |
---|---|
Product Color | Black |
Color Family | Black |
Weight with Stand (Approximate) | 12.35 lb |
Height with Stand | 13.46" |
Depth with Stand | 7.95" |
Width with Stand | 15.23" |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Technical Specs | |
---|---|
Native Contrast Ratio | 000:1 , 1 |
Vertical Frequency | 56 Hz to 75 Hz |
Maximum Resolution | 1280 x 1024 |
Screen Mode | SXGA |
Aspect Ratio | 5:4 |
Brightness | 212 Nit |
Response Time | 5 ms |
Color Supported | 16.7 Million Colors |
Horizontal Viewing Angle | 170° |
Vertical Viewing Angle | 160° |
Active Display Area (H x V) | 13.30" x 10.60" |
Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
Operation Hours | 16 Hours/ 7 Days |
Maximum Power Consumption | 11.90 W |
Operating Power Consumption | 11.90 W |
Compliance & Certification | |
---|---|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Packaging & Origin | |
---|---|
Package Contents |
|
Warranty & Support | |
---|---|
Limited Warranty | 3 Year |
General Information | |
---|---|
Brand | Planar |
Manufacturer | Leyard |
Product Type | LED Touchscreen Monitor |
Product Model | PT1745P |
Manufacturer Website Address | http://www.planar.com |
