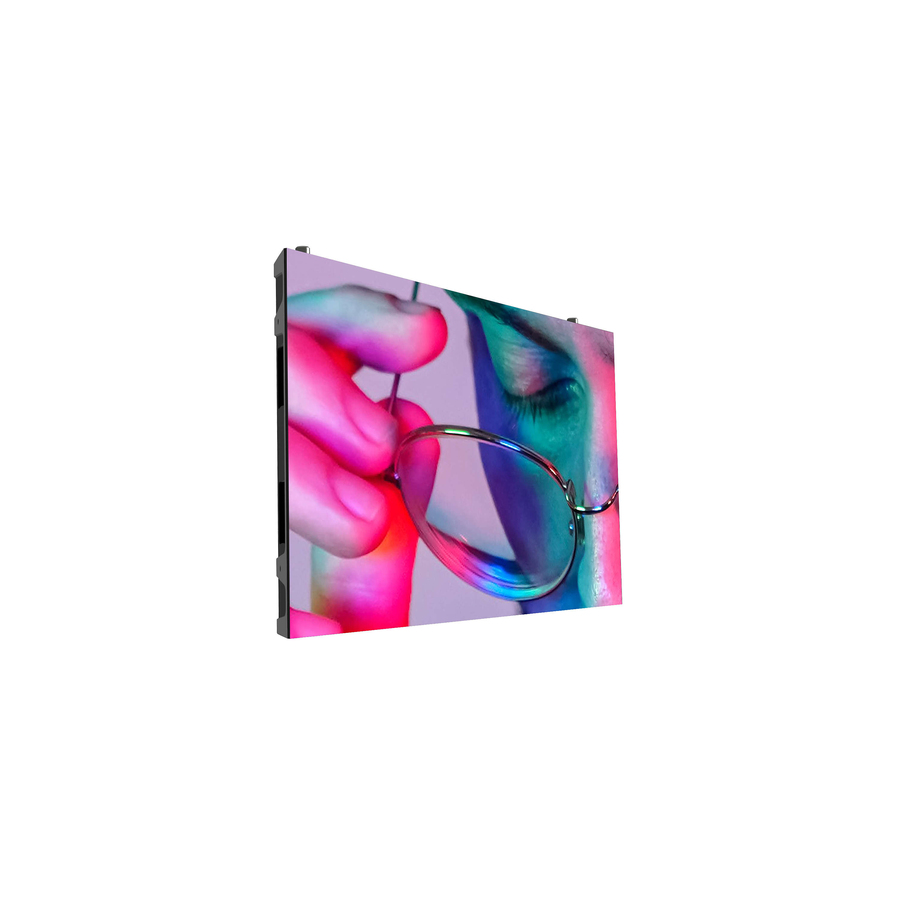

Unleash your imagination even moreLED Display for every form and shape
- 22"
- Direct View LED
Available in 3 dimensions
Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners.
Conformal coating and ingress protection
Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.
Dynamic Panel Connect
Mix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance - resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel.
Dynamic Power Saving
Philips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows the display to dynamically save on power consumption.
Factory calibrated
Every Philips L-Line LED panel is calibrated in our factory under perfect circumstances. That means there's no need for further calibration on location, resulting in quicker installations. Calibration and configuration files are available to ensure fast maintenance.
Fire retardant design
Fire retardant design slows down the spread of flames in the event of fire, and help protect the structural integrity of the LED panel in case of fire. Tested and certified with Fire Safety Certifications.
Forms any shape, L-shape corner, or curvature
The Philips L-Line 7000 series LED panles come with a height of 25 cm and are available in 50 cm, 75 cm and 100 cm widths. These displays are ready to be installed in any landscape format with no limitations to size. Also available with bevelled corners to form curved designs in both convex and concave formats.
Optional bevelled corners allow curved displays
Create bezel-free displays of any shape, size or resolution. The modular design of Philips Professional LED panels means you can adapt to any space. Build vast, immersive installations or assemble intriguing patterns. Easily create displays that flow seamlessly around doorways and other openings. Even corners and curved displays become easy to create with the new Philips 7000 series.
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- 160 x 80 display resolution for reliable results with precision and clarity
- Direct View LED backlight technology offers visual brilliance with maximum efficiency
| Brand | |
|---|---|
| Brand | Philips Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Viewable Screen Size | 22" |
| Backlight Technology | Direct View LED |
| Display Resolution | 160 x 80 |
| Display Screen Type | LCD |
| Brightness | 1200 Nit |
| Pixel Pitch | 0.12" |
| Color Depth | 14-bit |
| Power & Battery | |
|---|---|
| Power Plug Type | C13 to C14 |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Bracket Mount |
| General Features | |
|---|---|
| Manufacturer | Philips Electronics |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP30 |
