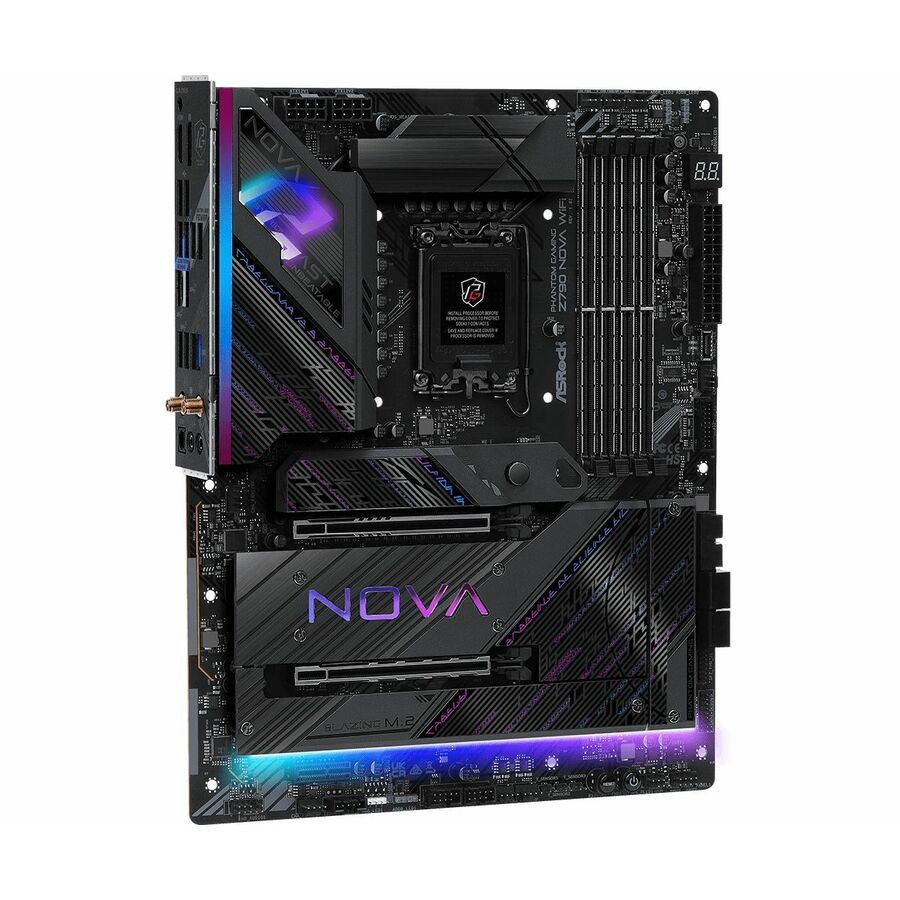

Z790 Nova WiFi
Nova is the most significant energy discharge ever witnessed by mankind, it's super-powerful which represents the performance our motherboard can deliver.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Optimized VRM Design 20K Capacitor | Long Lasting 20K Cap
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.
VRM Design | 20+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
PCB Design | 8L & 2OZ PCB Design
The 8 Layer PCB and 2 ounce copper inner layers provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Power Connector Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.king.
CPU Indicator
Tune your computer quickly with ASRock CPU Indicator. It rates your CPU by assigning points based on its performance and capabilities, helping users optimize overclocking settings for enhanced performance.
- Core processors supported for enhanced, dependable system performance with maximum usability
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax/be wireless standard support enables a hassle-free peripheral connection
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- With 2 USB 2.0 ports, connect devices for a quick data movement
| Brand | |
|---|---|
| Brand | ASRock |
| CPU / Processor | |
|---|---|
| Processor Supported | Core |
| Total Processor Supported | 1 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Multi GPU Supported | CrossFire |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 8000 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 3 |
| Number of USB 3.2 Gen 2 Type- | 4 |
| Total Number of Onboard USB P | 9 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASRock, Inc |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x1 Slots | 1 |
| PCI Express Standard | PCI Express 5.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 6 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Compliance | Energy-using Products Directive Ready (EuP Ready) |
