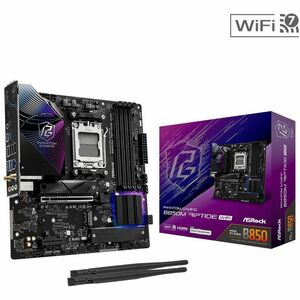

PHANTOM GAMING | B850M Riptide WiFi
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Performance | Optimized VRM Design | 20k Capacitor | Exclusive 20K Cap with 1000uF Capacitance
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
Higher Capacitance:
Greater charge storage for better support under high loads.
Lower Ripple:
Reduced power output fluctuations, improving quality.
More Stable Output Current:
Stable power supply, minimizing voltage impacts.
Better Performance & System Stability:
Increased reliability and consistent performance.
VRM DESIGN | 12+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr.MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Power Connector | Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
High Speed M.2 Solution | PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
DIY Friendly Design | Graphics Card Lite Release
Equipped with an enlarged latch for easy pressing, simplifying both the installation and removal of graphics cards.
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 M.2 (PCIe Gen4x2)
| Brand | |
|---|---|
| Brand | ASRock |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | RDNA Graphics |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 8000 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Error Checking | ECC |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| Number of USB 3.2 Gen 2 Type- | 1 |
| Total Number of Onboard USB P | 9 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASRock, Inc |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 2 |
| Number of PCI Express x4 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 4 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Compliance | Energy-using Products Directive (EuP) |
