PeopleLink's 4K UHD Active Optical Cables For Next-gen AV Applications
When it comes to cabling, Active Optical Cables (AOC) uses optical fibre "between the connectors" but accepts the same electrical inputs as a conventional HDMI Extender. AOC uses electrical-to-optical conversion at the cable ends to boost the cable's speed and range performance without compromising its ability to work with standard electrical connectors.
In simple words, to replace the HDMI Extender technology in data centers and high-performance computing (HPC) applications, Active Optical Cable (AOC) assemblies were developed.
AOC vs. Basic HDMI Extender Cable Technology:
HDMI Extender technology is being pushed to its limits by increasing data rates and the size of data center clusters. Conventional extender has a reach of only up to 50 meters at a Double Data Rate (DDR) of 20Gigabits per second (Gbps).
For smaller clusters, this might be acceptable, but for bigger clusters, the physical link distance makes the cluster's physical architecture a serious difficulty. For example, it is usual for designers to incorporate amplifiers, signal regenerators, or similar devices within a cable assembly because high-speed extender cable assemblies have natural bandwidth-distance constraints.
Benefits of PeopleLink Active Optical Cables:
- Ultra-Superior Bandwidth
Boosts UHD 4K60 (4:4:4) with complete signal integrity, HDMI 2.0 and with complete signal integrity, HDMI2.0 and with absolute signal integrity.
- Elimination of Delays or Signal Loss
For 24/7 AV applications, active optical cables are perfect. They guarantee excellent performance and prompt signal transfer.
- Simple Installation
Plug-and-play cable that is simple to navigate through confined places and around corners, it easilyconceals today's ultra-thin displays.
- Consistent Performance
Take advantage of a steady signal transmission while other options fall short. Reduce electromagneticnoise and EMI/RFI interference, which reduce signal quality.

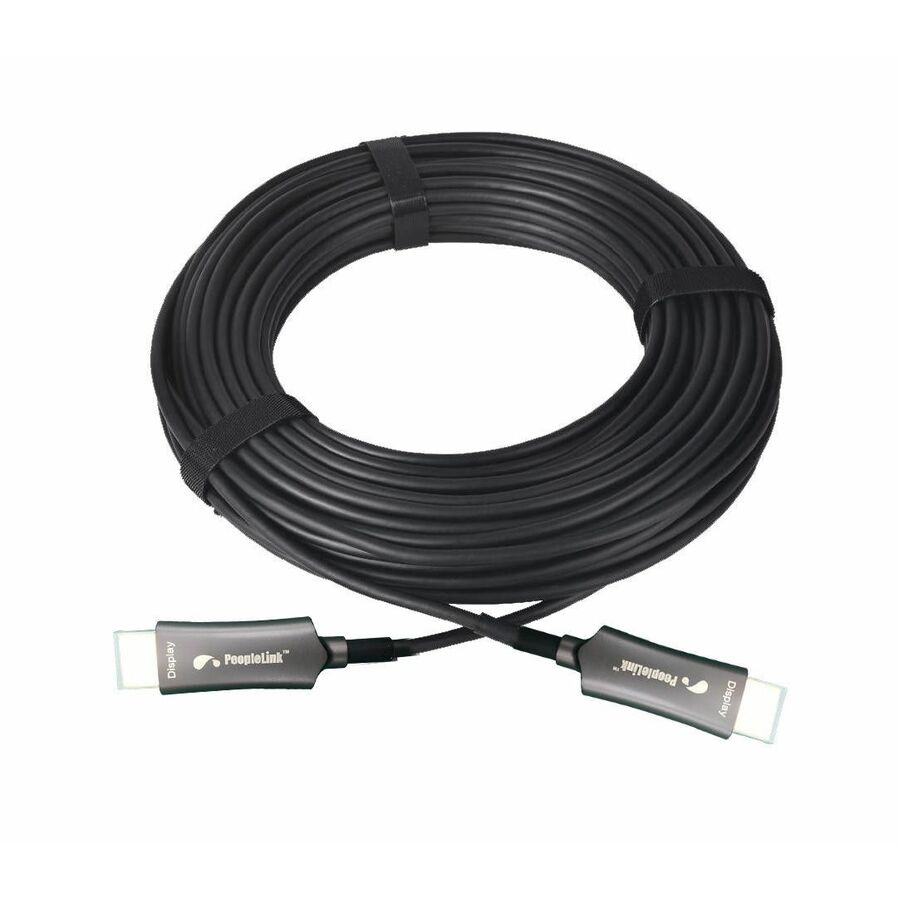

Key Features for HDMI 2.0 Type A to Type A AOC Cable
- Up to 100m Max Length (Custom Length Available)
- Support 4K@60Hz 4:4:4
- Support 18Gbps bandwidth
- Support HDCP1.4 & HDCP 2.2
- Support HEC, CEC, EDID, HDR, ARC, 3D
- Highly resistant to EMI and RFI
- No external power supply
- Plenum and CPR certified
- Provides robust audio and video support for uninterrupted playback, combining durability with high-quality signal transmission
- Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
- 4K UHD feature ensures dependable operation and improved usability, delivering consistent performance for everyday connectivity needs
- Features HDMI 2.0 Type A Digital Audio/Video connector for a smooth and hassle-free setup with an audio/video device, ensuring stable connectivity every time
- A/V Cable with data center application/usage provides reliable, feasible 3D printing solution
| Brand | |
|---|---|
| Brand | PeopleLink Collaboration Inc |
| Screen / Display | |
|---|---|
| Supported Resolution | 3840 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | PeopleLink Collaboration Inc |
| Cables | |
|---|---|
| Cable Length | 32.81 ft |
| Cable Type | Fiber Optic |
| Connector Type on First End | HDMI 2.0 Type A Digital Audio/Video |
| Connector on First End Details | 1 x HDMI 2.0 Type-A Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | HDMI 2.0 Type A Digital Audio/Video |
| Connector Gender on Second End | Male |
| Jacket Type | Plenum |
| Brand | PeopleLink Collaboration Inc |
| UPC/GTIN | 850077371356 |
| MPN | PPL-CP-H2A-AO-10 |
| Unit Count | 1 Units |
| Warranty | 12 Month |
