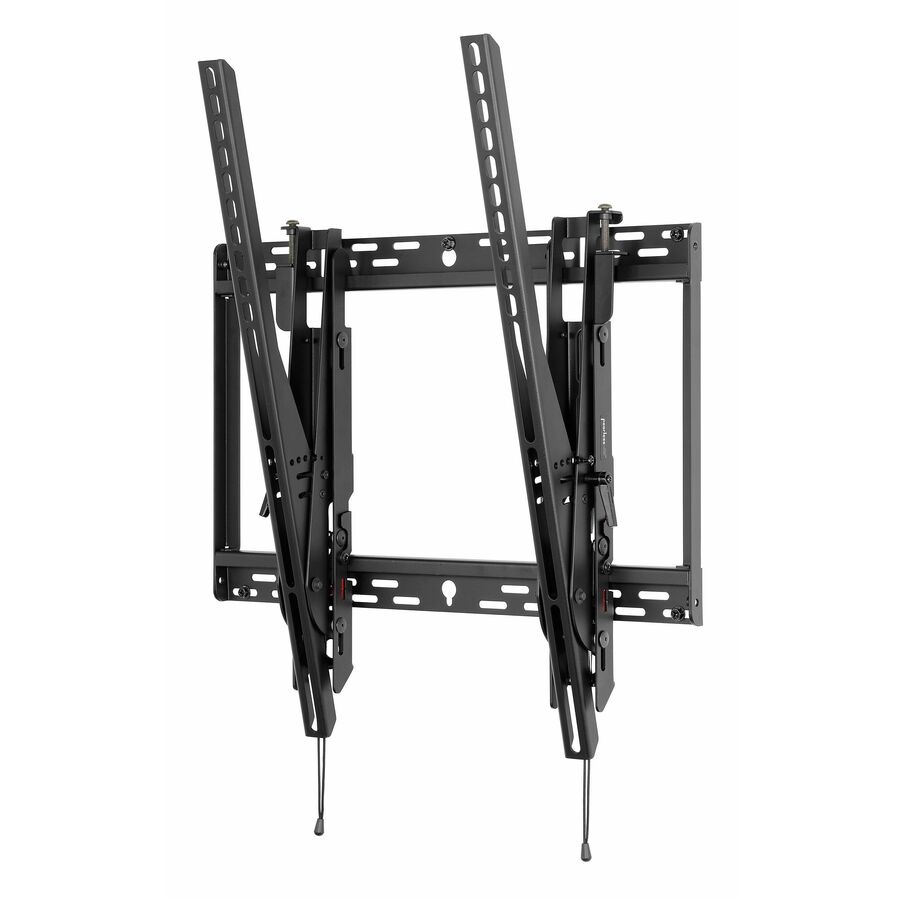

Peerless-AV's SmartMount® Universal Portrait Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the STP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Includes fastener pack with all necessary mounting and display attachment hardware (including M10)
- Lateral display adjustment up to 1.63" (41mm)
- Easy-Grip™ ratcheting handle locks the display into place
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Optional IncreLok™ feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
- Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
- Universal mount fits displays with mounting patterns up to 455 x 650mm (17.91" W x 25.59" H)
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 90" |
| Minimum Screen Size Supported | 46" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 350 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Slim Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 400 x 600 |
| Mount Surface | Wall |
| Orientation | Portrait |
| Maximum Adjustable Depth | 10.58" |
| Minimum Adjustable Depth | 3.38" |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 15° |
| Appearance | |
|---|---|
| Mount Function | Wall Mount |
| Finishing | Electro Polished |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Mount Pattern Compatibility T | Universal |
| Durability | Scratch Resistant |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Tilt |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
Peerless-AV® SmartMount® Universal Portrait Tilt Wall Mount for 46" to 90" displays - 1 Display(s) Supported - 46" to 90" Screen Support - 350 lb Load Capacity - 455 x 650 - VESA Mount Compatible - 1
