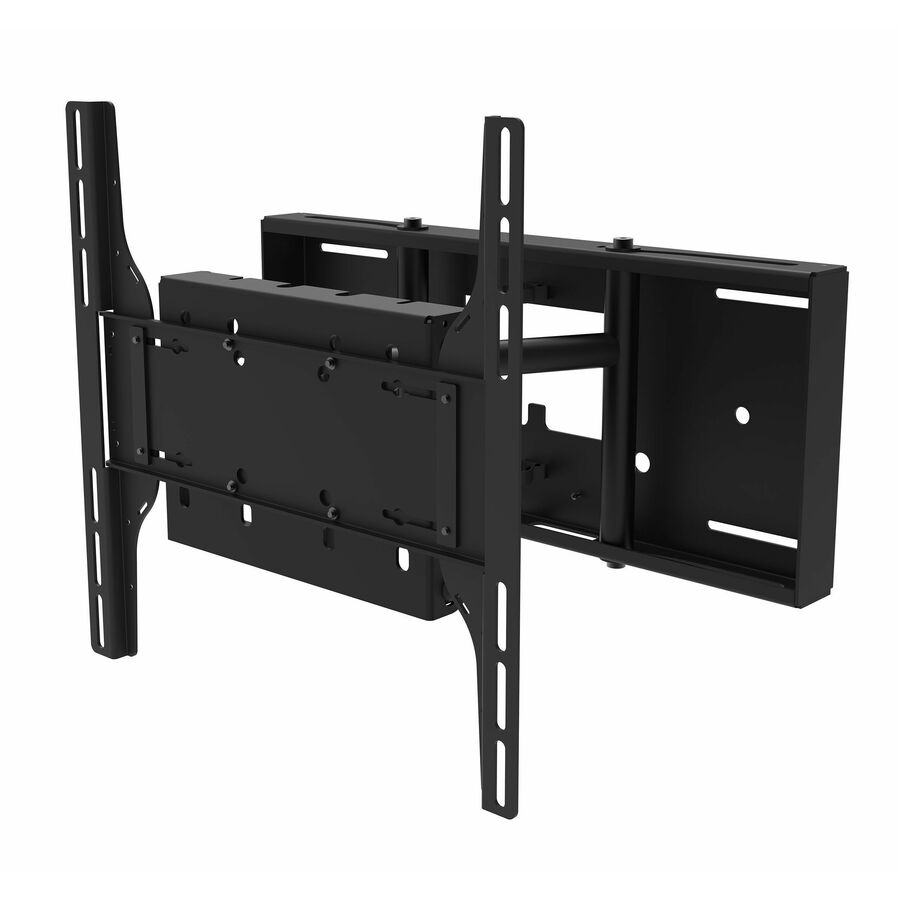

The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850-UNM acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850-UNM's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850-UNM is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
- Universal models adapt to displays with mounting holes up to 400 x 400mm (15.75" W x 15.75" H)
- IncreLok™ tilt provides tilt at 0°, 5° and 10° - ±1° of roll for horizontal display leveling during installation
- Mounts to 16" wood studs, concrete and cinder block
- Landscape or portrait mounting options increases display versatility
- Clean profile design hides cables within enclosed wall plate for a clutter-free installation
- Pull-out service access provides easy access to the back of the display for maintenance
- Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
- Prevent tampering or theft with unique LockKey™ installation brace and security screws on the adaptor plate
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 65" |
| Minimum Screen Size Supported | 49" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 150 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 400 x 400 |
| Mount Surface | Cinder Block |
| Orientation | Landscape/Portrait |
| Maximum Adjustable Depth | 11.14" |
| Minimum Adjustable Depth | 2.73" |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 10° |
| Appearance | |
|---|---|
| Mount Function | Wall Mount |
| Finishing | Triglycidyl Isocyanurate Polyester (TGIC) |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Mount Pattern Compatibility T | Universal |
| Durability | Theft Resistant |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Pivot |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
