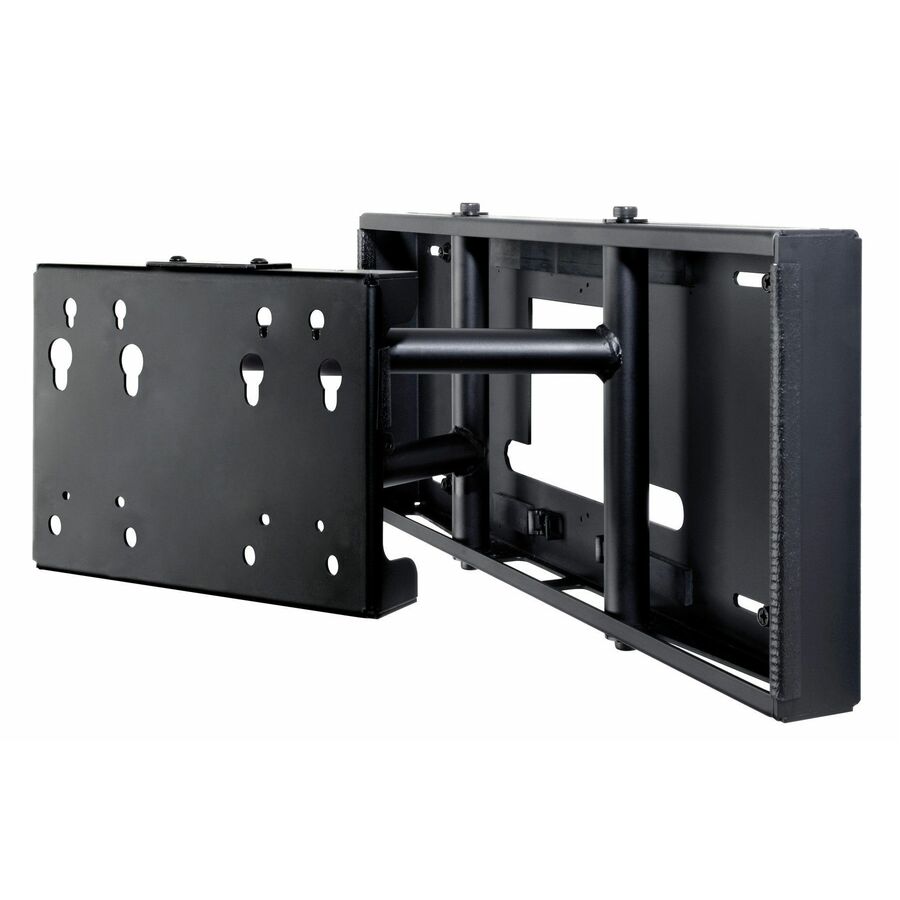

The FPS-1000 Pull-out Swivel Wall Mount combines the best features of a wall mount and a pivot arm in one. This mount is essential for on the wall, low-profile, single or multi-panel video wall installations or hospitality recessed applications. It comes standard with VESA® 100/200mm compliant mounting hole pattern and is compatible with Peerless-AV PLP adaptor technology to accommodate virtually any flat panel display. Installation and maintenance are made easy with 4" (101.6mm) of horizontal on the wall shift, LockKey™ safety feature and easy access to the back of the display for maintenance. Functionality, great looks and display compatibility options combined with versatile installation features make the FPS-1000 the ideal solution for any single or multi-display installation.
- Mounts on 16" (406.4mm) studs, with up to 4" (101.6mm) of horizontal shift
- Built-in swivel up to 90° (45° each direction) allows for adjustable viewing angles
- Built in adaptor plate supports VESA 100 x 100 and 200 x 100 mm compatibility
- Easy pull-out swivel provides quick maintenance access
- Works with Peerless-AV dedicated and universal PLP mounting adaptor plates
- Roll can be adjusted 1° clockwise or counterclockwise
- Ideal for wall mount applications and attachment to false backsplashes
- Clean profile design hides wiring and mount within enclosed wall plate
- Security screws prevent tampering and theft
- Includes security lock out screw to eliminate pull out ability
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 80" |
| Minimum Screen Size Supported | 32" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 150 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Low Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 100 |
| Mount Surface | Wall |
| Maximum Adjustable Depth | 10.53" |
| Minimum Adjustable Depth | 2.16" |
| Maximum Swivel Angle | 45° |
| Minimum Swivel Angle | -45° |
| Appearance | |
|---|---|
| Mount Function | Wall Mount |
| Finishing | Fused Epoxy |
| General Features | |
|---|---|
| Durability | Theft Resistant |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Hospitality |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
