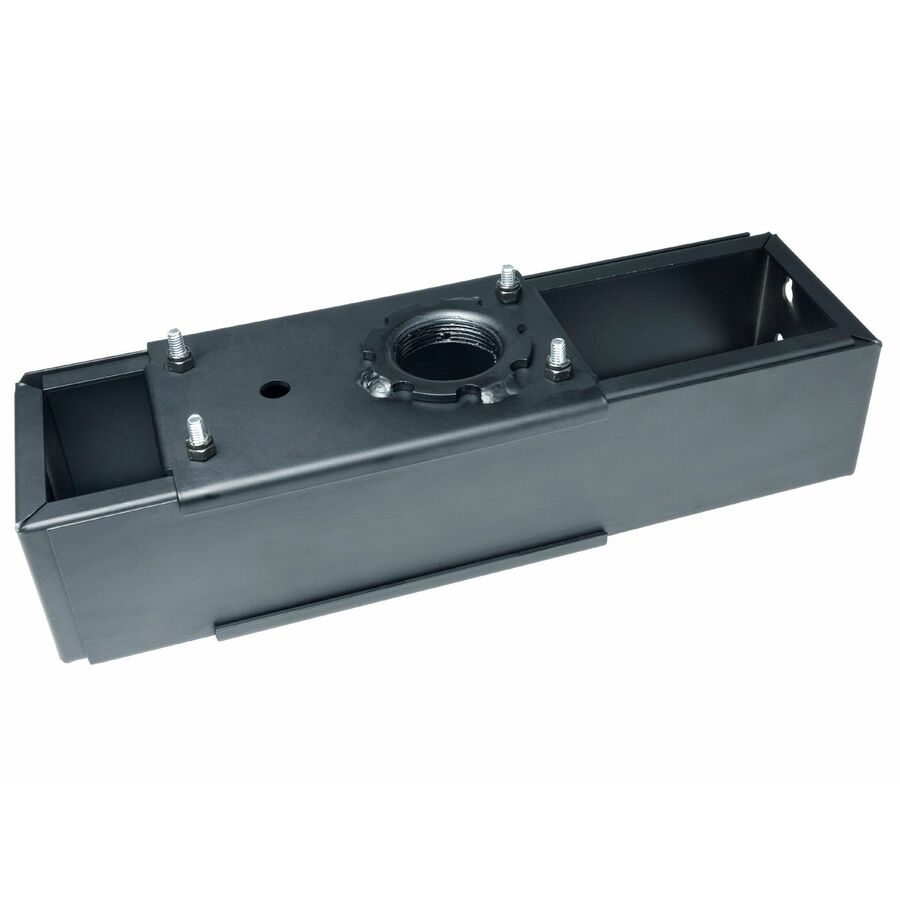

The ACC12 Internal Joist Mount attaches between two ceiling joists above a finished ceiling. Its expandable design allows for attachment to joists on 16" or 2" centers. The mount features a 1 1/2-11.5 NPS threaded fitting which accepts most Peerless-AV Extension Columns. Because it is adjustable, the installer can fine tune the point of attachment prior to installation resulting in the optimum viewing position for the finished assembly.
- Attachment point for extension column may be positioned at any point within 2 3/4" of either joist
- Expandable size enables mounting between two wood joists from 16" to 20" centers
- Unit has 1 1/2" 11.5 NPT fitting for attachment of extension column
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 300 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Mount Surface | Ceiling |
| Appearance | |
|---|---|
| Mount Function | Extendable |
| Finishing | Powder Coated |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Ceiling Plates |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
