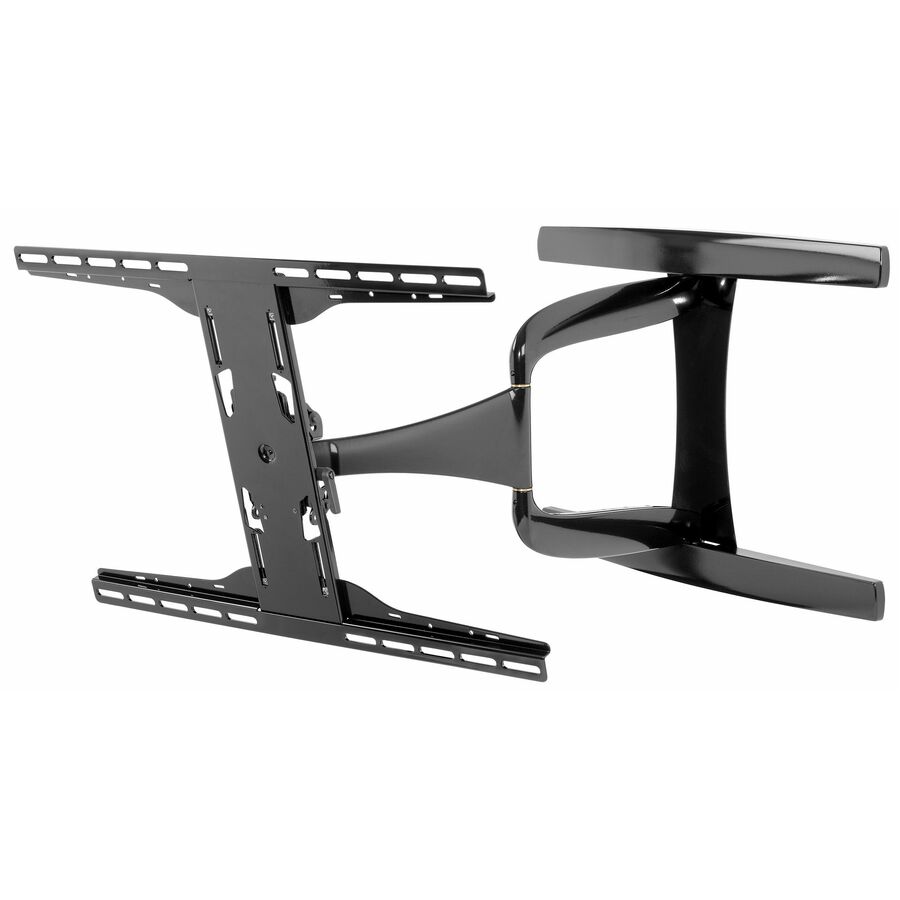

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA761PU is built to hold medium to larger displays firmly in any position - landscape or portrait - while still offering an ultra-low profile. An innovative I-shaped adaptor plate makes it easy to access the back of the display, keeping hardware hidden, and features internal cable management, providing a clean, professional look that transitions smoothly from the wall to the display. With a gloss black finish, the SUA761PU matches any décor.
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±90° of side-to-side swivel
- One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools
- Arm retracts to 1.85" (47mm) and extends up to 24.85" (631mm) from wall
- Internal cable management provides clean, professional installation finish
- Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm
- The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display
- Landscape or portrait mounting options increases display versatility
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 65" |
| Minimum Screen Size Supported | 37" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 80 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Ultra Low Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Mount Surface | Wall |
| Orientation | Landscape/Portrait |
| Maximum Adjustable Depth | 24.85" |
| Minimum Adjustable Depth | 1.85" |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 15° |
| Maximum Swivel Angle | 90° |
| Minimum Swivel Angle | -90° |
| Appearance | |
|---|---|
| Height Adjustable | Yes |
| Mount Function | Wall Mount |
| Finishing | Fused Epoxy |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Minimum Mounting Pattern | 200 x 100 |
| Mount Pattern Compatibility T | Universal |
| Durability | Scratch Resistant |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Articulating |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount for 37" to 65" Ultra-Thin Displays - 1 Display(s) Supported - 37" to 65" Screen Support - 80 lb Load Capacity - 200 x 100, 600 x 400 - VESA Mount Compatible - 1 Unit
