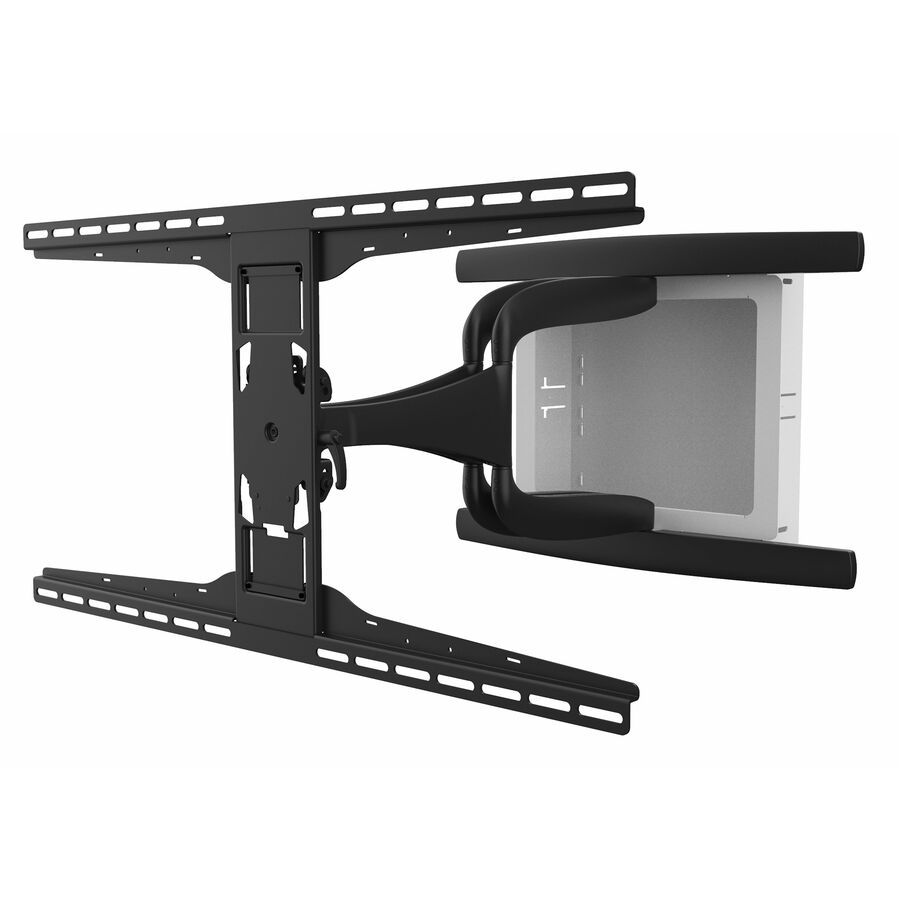

Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM771PU is ADA compliant when used with displays 2" thick or less.
- Includes Articulating Mount with 800 x 400mm VESA® adaptors
- I-shaped adaptor plate helps avoid blocking connections on the back of display
- Removable trim ring allows for pre-construction or retrofit installations
- Obstruction free In-Wall Box provides ample room and accessibility to equipment
- Removable mounting plates allow wiring terminations to take place outside of the box to ease the installation process
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Landscape or portrait mounting options increases display versatility
- Low profile design provides an ADA compliant solution when used with displays 2" thick or less
- Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
- Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Adj
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 90" |
| Minimum Screen Size Supported | 42" |
| Power & Battery | |
|---|---|
| Minimum Load Capacity | 25 lb |
| Maximum Load Capacity | 150 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Low Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 800 x 400 |
| Mount Surface | Wall |
| Orientation | Landscape/Portrait |
| Maximum Adjustable Depth | 28.84" |
| Minimum Adjustable Depth | 5.84" |
| Maximum Swivel Angle | 90° |
| Minimum Swivel Angle | -90° |
| Appearance | |
|---|---|
| Height Adjustable | Yes |
| Mount Function | Swivel |
| Finishing | Fused Epoxy |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Minimum Mounting Pattern | 200 x 100 |
| Mount Pattern Compatibility T | Universal |
| Durability | Scratch Resistant |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | In Wall Mount |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
