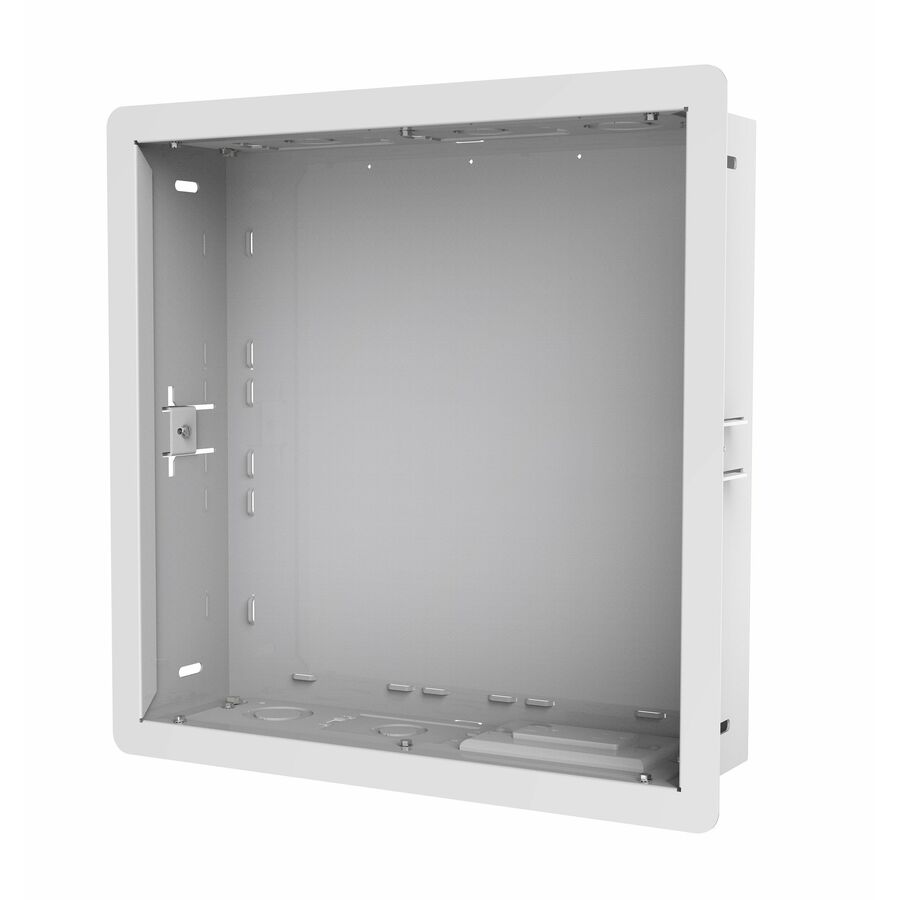

Peerless-AV's In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
- UL 2416 listed
- Integrated cable tie locations
- Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
- Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 25 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Recessed |
| Form Factor | Wall Mountable |
| Mount Surface | Wall |
| Appearance | |
|---|---|
| Mount Function | Wall Mount |
| Finishing | Powder Coated |
| General Features | |
|---|---|
| Durability | Scratch Resistant |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | In wall box |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
Peerless-AV® 14"x14" In-Wall Box for Recessed Power and AV Components with optional Surge Protector - 25 lb Load Capacity - 1 Unit
