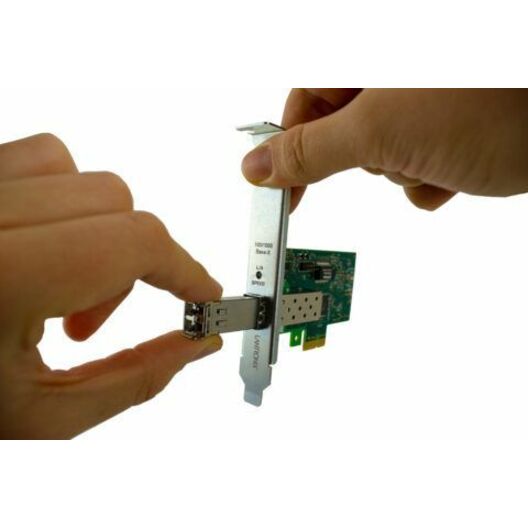

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed. NDAA Compliant, TAA Compliant
- Supports identification of NIC when multiple cards are installed
- RoHS Compliance
- Standard bracket attached, low-profile bracket included
- PXE and UEFI Boot
- Intelligent Interrupt Generation
- Low Latency Interrupts
- Legacy and Message Signaling Interrupt/Extension MSI/MSI-X
- Interrupt Throttling Control
- Interrupt Handling
- Transmit Segmentation Offloading TSO
- IPv6 support for IP/TCP and IP/UDP receive checksum offload
- IPv4 checksum offloading TCP/UDP
- IPv4 and IPv6
- Magic Packet Wake-up enable
- Jumbo frames support up to 9014 bytes
- Advanced Configuration and Power Interface ACPI Specification v2.0c
- Advanced Power Management APM Support
- Smart Load Balancing SLB and Failover
- Full Wake-on-LAN Support
- Link Aggregation Control Protocol LACP
- Link Aggregation Smart Switch
- IEEE 802.1Q VLAN Support
- Compliant with PCIe Rev 2.1 Interface
- Supports IEEE 802.3x and IEEE 802.3z Full-Duplex Flow Control
- Supports full-duplex mode
- High bandwidth 1000 Mbps network speed 100/1000 Mbps with Auto-Negotiation for SFP version
- Supports PCIe x1
| Brand | |
|---|---|
| Brand | Transition Networks |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Maximum Operating Distance | 1804.46 ft |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express 2.1 x1 |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/62.5/125 µm |
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 5% |
| Maximum Operating Humidity (N | 95% |
| TAA Compliant | Yes |
