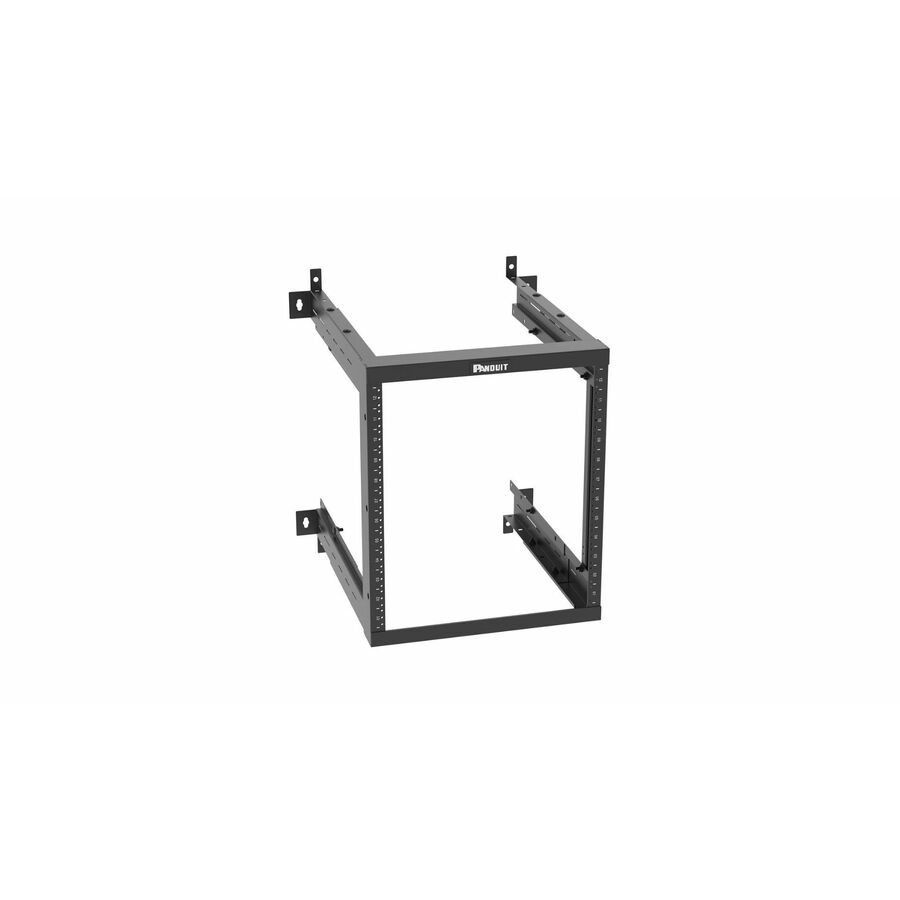

The PanZone® 12RU Adjustable Depth Wall Mount Rack supports equipment mounting depths from 18" , 21.5" , or 25" to provide greater flexibility with a single part number. Side rails offer slots that shall accept Tak-Ty or Bend Radius Control accessories for cable management. The construction method shall allow for single person installation. The equipment mounting rails shall be #12-24 threaded style mounting and include printed rack unit numbering from bottom up. Load rating of 150lbs, black.
- Adjustable depth: Supports equipment mounting depths from 18" , 21.5" , and 25" to provide greater flexibility with a single part number
- Welded steel construction: ETL approved, meets UL2416 with a tested load capacity of 150 lbs. for the 9 and 12 RU, 200 lbs. for the 18 RU
- Self-squaring: Design allows for single person installation
- Key features: Horizontal slots on the adjustable wall attachment brackets are compatible with Tak-Ty and allow for easy front to back cable management
- Color options: Available in Black
- Numerical rack unit identification: Allows for quick location of rack spaces speeding installation of rack mount items, racks are numbered from bottom up
- Fully bonded structure: Paint piercing hardware electrically bonds the rack when assembled, eliminating the need for additional bonding components
- Integrated masked grounding locations: Two masked grounding locations available for customizable configurations
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Rack Height | 12U |
| Rack Type | Open Frame |
| Maximum Weight Capacity | 150 lb |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
