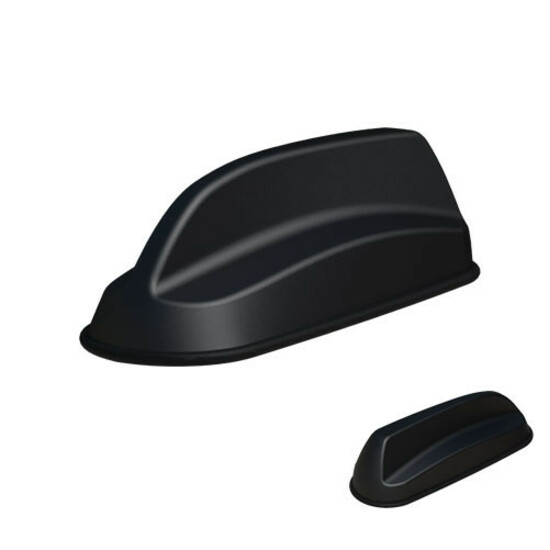

The SHKG has a compact OEM style sharkfin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In order to maximise functionality versions of the SHK[G] are available that add either 2x2 MiMo or 3x3 MiMo antenna functionality for 2.4/5.8GHz WiFi.
- OEM sharkfin styling
- MiMo 4G/3G/2GHz and GNSS in one housing
- Optional 2x2 or 3x3 WiFi 2.4/5GHz
The antenna does not require a metallic ground plane and maintains a high level of performance even when mounted on a non-metallic surface. This high-performance antenna offers multiple antenna functions while remaining discreet and is suitable for (overt/covert) applications where a cost-effective effective, efficient and robust antenna is essential.
- Designed to operate at 1562 MHz to 1612 MHz operating frequency range
- Get improved signals for your gps with this antenna
- Provides gain of up to 26 dB
- Designed to be light in weight and easy to install
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Gain | 26 dB |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Panel |
| General Features | |
|---|---|
| Operating Frequency Range | 2500 MHz to 3800 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |
Panorama Antennas SHKG Antenna - 1562 MHz to 1612 MHz, 2.4 GHz to 5.8 GHz, 2300 MHz to 2500 MHz, 4900 MHz to 6000 MHz, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz - 26 dB - GPS, Cellular Network, Wireless Data Network - Black - Panel - Omni-directional - FME, SMA Connector
