Panorama Antennas SHK[X]4-7-49[X] | 4�4 MiMo Reef Sharkee Antenna

$ 564.99 $ 564.99
$ 564.99

$ 564.99 / Units
  • Brand
  • Voltage Standing Wave Ratio (
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Operating Frequency Range
  • Directivity
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • Antenna Gain (Isotropic)
  • Antenna Gain
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

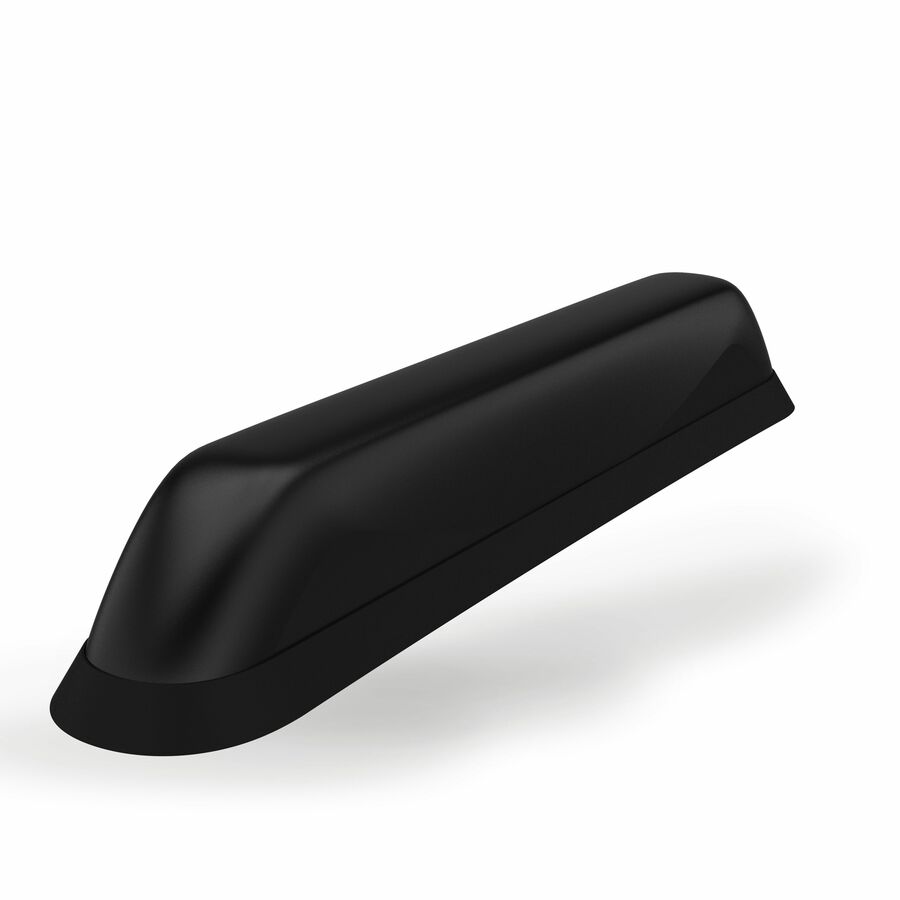

The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.

The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.

The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panel.


  • Provides optimized pattern coverage with 698MHz to 960MHz operating frequency range
  • Get improved signals for your cellular network with this antenna
  • Provides gain of up to 30 dB
  • Provides ease of management and installation thanks to its omni-direction feature
  • Panel-mountable design for mounting convenience
Brand
Brand Panorama Antennas Ltd
Networking & Connectivity
Voltage Standing Wave Ratio ( <2.5:1
Antenna Gain (Isotropic) 9 dBi
Antenna Gain 30 dB
Audio
Directivity Omni-directional
Size / Dimensions
Form Factor Panel
General Features
Operating Frequency Range 2400MHz to 7125MHz
Manufacturer Panorama Antennas Ltd
Cables
Connector Type RP-SMA
Brand Panorama Antennas Ltd
MPN SH-IN2875
Unit Count 1 Units
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Panorama Antennas SHK[X]4-7-49[X] | 4�4 MiMo Reef Sharkee Antenna - 698MHz to 960MHz, 1427MHz to 4900MHz, 2400MHz to 7125MHz - 30 dB - 9 dBi - Cellular Network, Vehicle, Wireless Data Network, GPS - Black - Panel - Omni-directional - SMA, RP-SMA Connector
