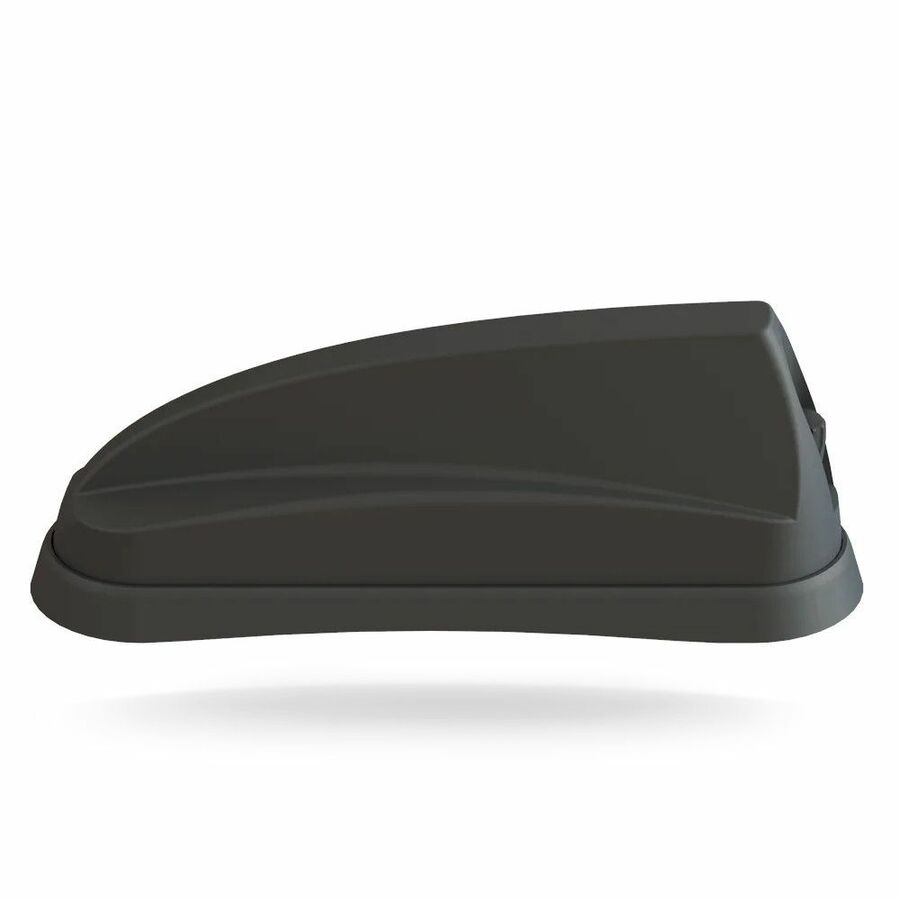

4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG 'Sharkee®' range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The OEM style shark fin housing contains a 2�2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 2�2, 3�3, or 4�4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.
- Discreet automotive OEM SharkFin design
- Multiple antenna functions in a single housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- 2�2 MiMo Cellular - 617-960 / 1710-6000MHz
- GPS/GNSS with advanced filtering for LTE Band 13/14
- Optional 2�2, 3�3, or 4�4 MiMo WiFi 2.4/4.9-7.2GHz
- UN ECE R118 Compliant Cable Feeds
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Type | Panel |
| Voltage Standing Wave Ratio ( | <2:1 |
| Voltage Standing Wave Ratio (VSWR) | <2:1 |
| Antenna Gain (Isotropic) | 9 dBi |
| Antenna Gain | 26 dB |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Magnetic Mount |
| Appearance | |
|---|---|
| Mast Material | Aluminum Alloy |
| General Features | |
|---|---|
| Operating Frequency Range | 4900 MHz to 6000 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | FME |
