- 2x2 MiMo 4G/5G antenna solution
- Wall, rail or mast mount
- Optional GPS/GNSS - 26dB LNA
- Integrated coaxial cables

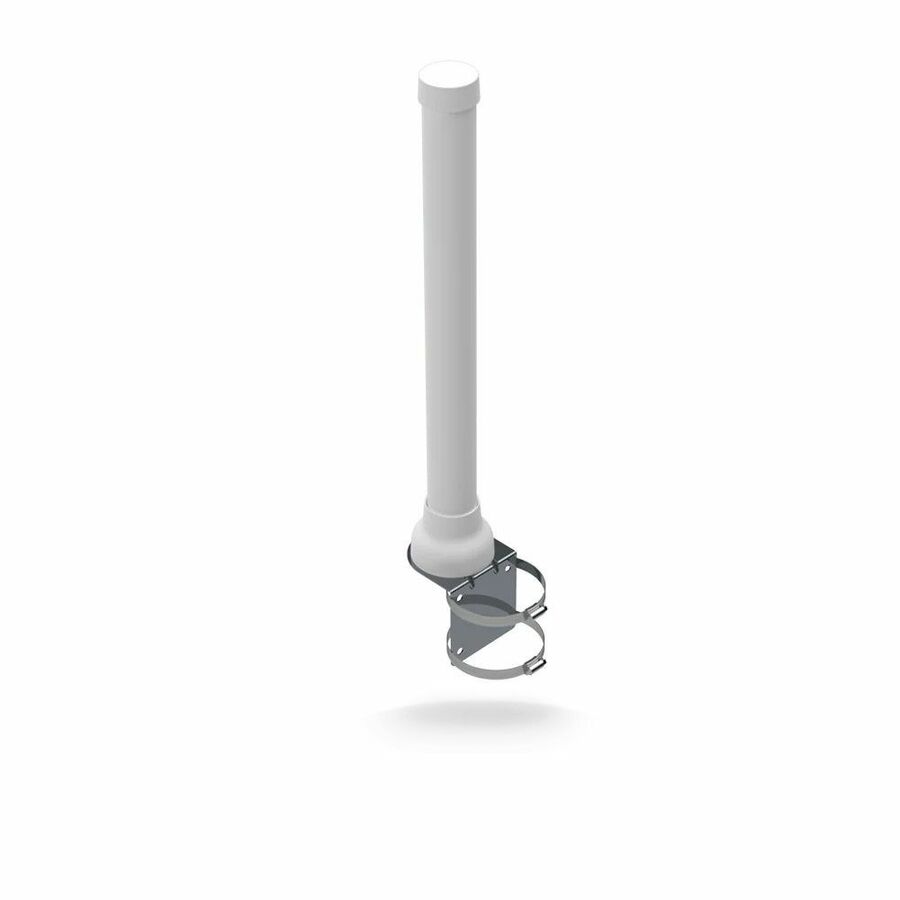

The BS[G]M-6-60 antenna is a MiMo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.
The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps
The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.
- Provides optimized pattern coverage with 617 MHz to 960 MHz frequency
- With its strong connection and faster transfer speeds, this cellular network provides the best reception
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted using either a mast, wall or railing
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Power & Battery | |
|---|---|
| Power Source | DC Power |
| Networking & Connectivity | |
|---|---|
| Voltage Standing Wave Ratio ( | <2.5:1 |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Antenna Gain (Isotropic) | 6 dBi |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Panel Mount |
| Diameter | 3.39" |
| General Features | |
|---|---|
| Operating Frequency Range | 1427 MHz to 6000 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |
| Miscellaneous | |
|---|---|
| Product Name | MiMo 4G/5G Omni Antenna |
