- Magnetic mounting
- Active GPS/GNSS element
- 30dB LNA gain

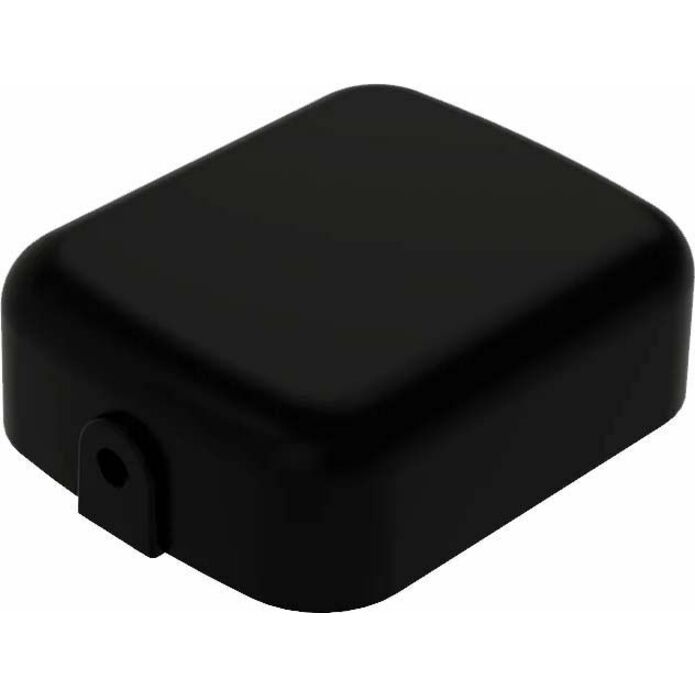

The GPSME series is a high performance magnetic mount GPS/GNSS antenna in a discreet, low profile housing. With an integral magnetic base, the GPSME is easy to install, remove or reposition without causing any damage to the vehicle. The strong magnet holds the GPSME securely in place, ensuring that you get the best GPS/GNSS service all the time.
The antenna is supplied with 6m length of high quality RG174 coaxial cable and a variety of connector types are available to suit many GPS/GNSS applications.
- Delivers?enhanced performance at 1562 MHz to 1612 MHz frequency
- Widely used in gps
- Offers up to 30 dB gain
- Provides ease of installation without sacrificing performance one bit
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Power & Battery | |
|---|---|
| Power Source | DC Power |
| Networking & Connectivity | |
|---|---|
| Voltage Standing Wave Ratio ( | <2.0:1 |
| Antenna Gain | 30 dB |
| Size / Dimensions | |
|---|---|
| Form Factor | Magnetic Mount |
| General Features | |
|---|---|
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMC |
