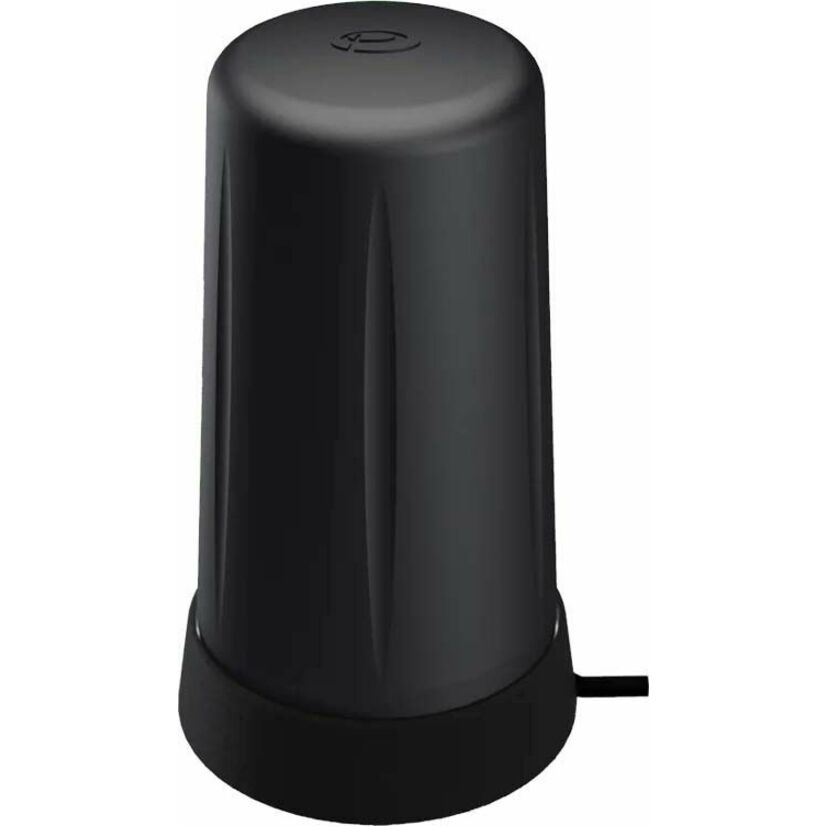

The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.
The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960 MHz and 1710-6000 MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient length of flexible RG174 cable and a double sided adhesive pad, the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.
- Low profile wideband antenna
- Cost effective solution
- Robust product with integrated cable of various lengths
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Medium dB gain antenna
- Magnetic mount solution
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Gain (Isotropic) | 8 dBi |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Magnetic Mount |
| Diameter | 1.89" |
| General Features | |
|---|---|
| Operating Frequency Range | 4000 MHz to 6000 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |
| Miscellaneous | |
|---|---|
| Product Name | LPBEM-6-60 Antenna |
