- Cost Effective 2G/3G/4G/5G Coverage
- Integrated Low Loss Cable
- Robust but Subtle Design

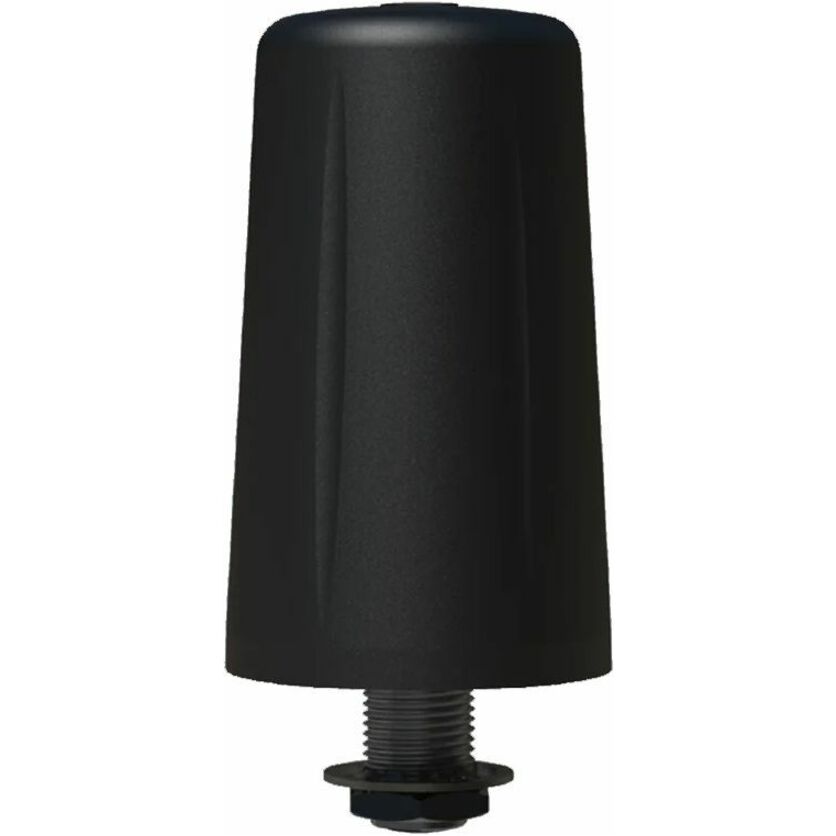

The LPB-6-60 antenna is a cost effective omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.
The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.
This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
The LPB-6-60 requires a conductive ground plane of >300mm (1') diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).
- Delivers?enhanced performance at 617MHz to 960MHz frequency
- This antenna provides improved signals to your cellular network
- Receive signals from multiple directions with this omnidirectional antenna
- Can be mounted as external
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Gain (Isotropic) | 2.5 dBi |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Panel |
| Diameter | 1.89" |
| General Features | |
|---|---|
| Operating Frequency Range | 1710MHz to 6000MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |
| Miscellaneous | |
|---|---|
| Product Name | LPB-6-60 Antenna |
Panorama Antennas LPB-6-60 Antenna - 617MHz to 960MHz, 1710MHz to 6000MHz, 617MHz to 960MHz - 2.5 dBi - Cellular Network, Router, Modem, Wireless Data Network - Black - External, Internal, Bracket Mount, Panel - Omni-directional - SMA Connector
