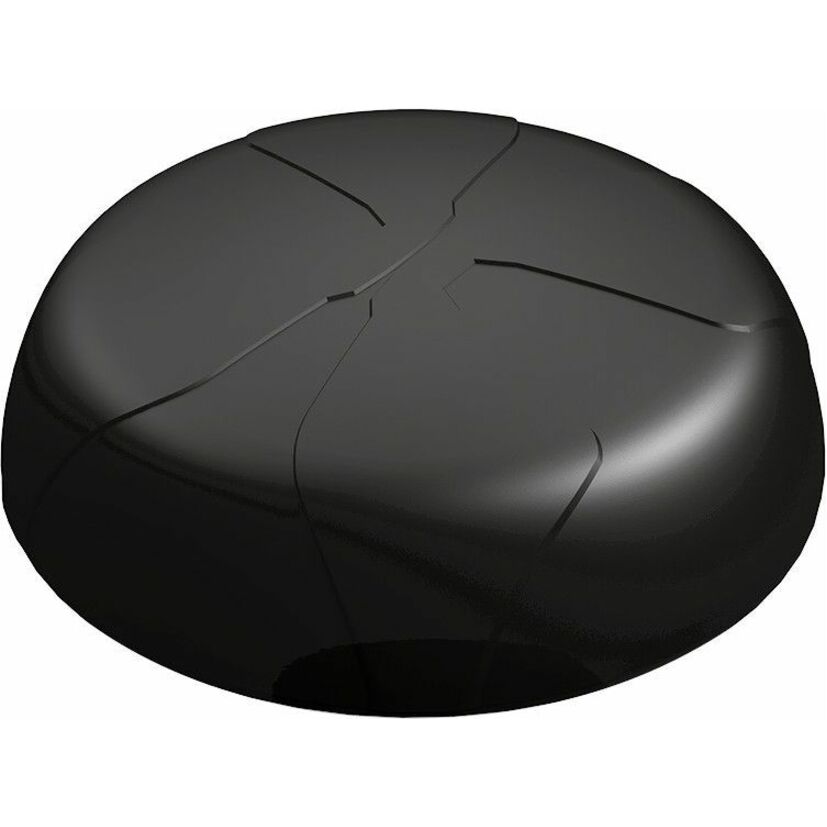

The Panorama L[G]M[Q]M4 low profile MiMo antenna range has been designed to support the next generation of vehicular LTE routers with 4�4 MiMo.
The antenna enclosure can provide up to nine antenna elements. All versions have four ultra-wideband elements for 698-3800MHz which support MiMo function for 4G/5G cellular bands. LG versions offer a GPS/GNSS antenna which has a 30dB gain LNA with high performance filtering for reliable operation. Variants are also available which include 2, 3 or 4 dual-band 2.4/4.9-6GHz WiFi elements for MiMo function designated by the suffix 24-58.
The antenna does not require a metallic ground plane and maintains a high level of performance even when mounted on a non-metallic surface. The GNSS antenna module carries E11 Mark type approval under ECE R10 and pigtail cables are certified to ECE R118.
The LTE elements are designed for 4�4 MiMo operation, however, it is possible to utilise these as 2 pairs of 2�2 MiMo for a router with dual radios used in a failover configuration (i.e. only one radio active at any time). As this configuration only uses 2 out of the 4 antennas for a single radio, the network coverage should be checked to ensure that this use is a suitable solution.
Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with dual radios that use concurrent 2�2 MiMo operation, as there is not sufficient isolation between the MiMo pairs.
