Panorama Antennas GPS[X]D4[X]-6-60 Antenna - 1559MHz - 1612MHz - 26 dB - Cellular Network, GPS - Black - Panel Mount, Magnetic Mount - Omni-directional - SMA Connector

$ 519.99 $ 519.99
$ 519.99

$ 519.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Operating Frequency Range
  • Directivity
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Antenna Gain
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

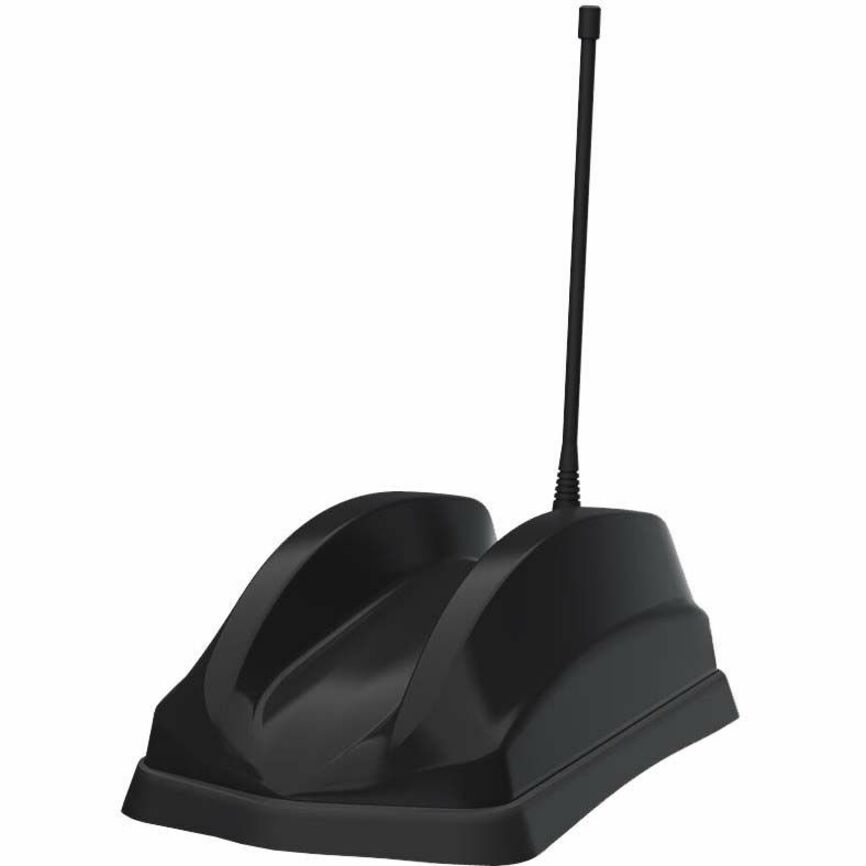

The GPS[X]D4[X]-6-60[-X] | GPSD4-6-60 | Dual-Sharkee is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

The housing contains a 4�4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6�6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single-hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle's resale value.

  • Distinctive Automotive SharkFin design
  • Up to a 15-in-1 Combination Antenna Solution
  • Covers all 4G/5G LTE bands, WiFi 6e and GPS/GNSS bands
  • 4�4 MiMo 600-6000MHz LTE antenna elemments
  • Offers up to 6�6 MiMo WiFi 6e, and up to 4x GPS/GNSS
  • Allows for external VHF, UHF or combination whip for voice radio connectivity
Brand
Brand Panorama Antennas Ltd
Networking & Connectivity
Antenna Gain 26 dB
Audio
Directivity Omni-directional
Size / Dimensions
Form Factor Magnetic Mount
General Features
Operating Frequency Range 1559MHz - 1612MHz
Manufacturer Panorama Antennas Ltd
Cables
Connector Type SMA
Miscellaneous
Product Name GPS[X]D4[X]-6-60 Antenna
Panorama Antennas GPS[X]D4[X]-6-60 Antenna - 1559MHz - 1612MHz - 26 dB - Cellular Network, GPS - Black - Panel Mount, Magnetic Mount - Omni-directional - SMA Connector
