Connect two GPS/GNSS receivers to one antenna.
The Panorama DPD-GPS allows you to run 2 GPS, GLONASS, Beidou, Compass, or Galileo receivers from only a single antenna. The DPD-GPS splits the received signal from the antenna into two receivers whilst only allowing one of the receivers to feed voltage to the antenna ensuring that the antenna is able to function correctly.
The DPD-GPS is perfect for ensuring that multiple compatible GPS/GNSS receivers can be used in the same vehicle with the minimum number of antennas thereby reducing clutter and installation cost.
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Works on 1.61 GHz maximum frequency for efficient performance
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| General Features | |
|---|---|
| Maximum Frequency | 1.61 GHz |
| Minimum Frequency | 1.56 GHz |
| Manufacturer | Panorama Antennas Ltd |
| Misc Ports | |
|---|---|
| Number of Antenna Outputs | 2 |
| Number of Antenna Inputs | 1 |

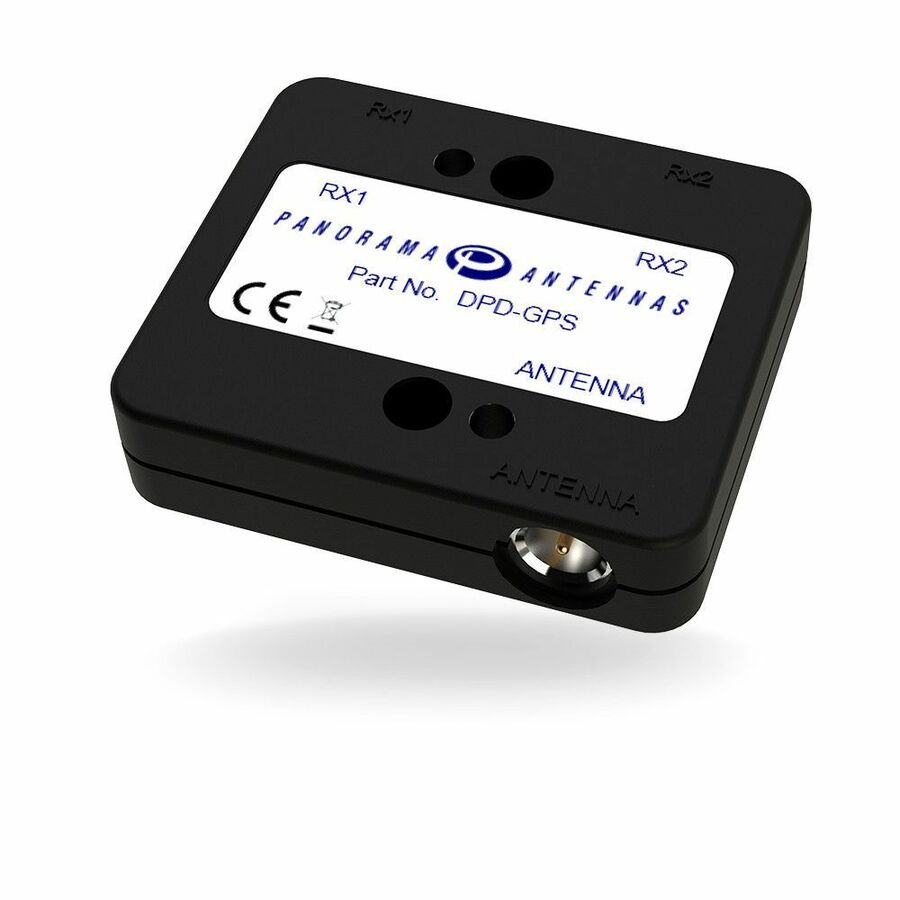

Panorama Antennas GPS/GNSS Power Divider - 1.61 GHz - 1.56 GHz to 1.61 GHz - Vehicle - Black
