Panorama Antennas GPS[X]D4[X]-6-60 | 4�4 MiMo 4G/5G Sharkfin Antenna

$ 339.99 $ 339.99
$ 339.99

$ 339.99 / Units
  • Brand
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Operating Frequency Range
  • Directivity
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Antenna Gain
  • Frequency Band Type
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

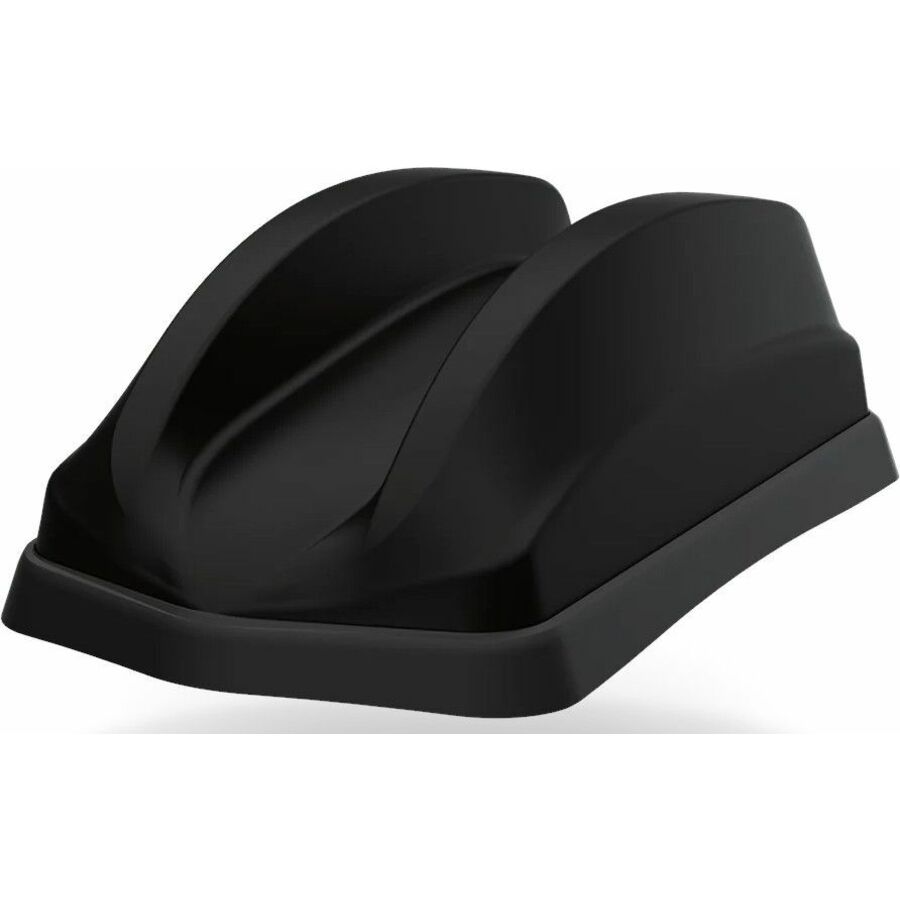

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

The housing contains a 4�4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6�6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle's resale value.


  • Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
  • This antenna is an excellent choice for cellular network
  • Offers up to 26 dB gain
  • Receive signals from multiple directions with this omnidirectional antenna
  • Can be mounted as stud mount
Brand
Brand Panorama Antennas Ltd
Networking & Connectivity
Antenna Gain 26 dB
Frequency Band Type UHF
Audio
Directivity Omni-directional
Size / Dimensions
Form Factor Whip
General Features
Operating Frequency Range 1427 MHz to 6000 MHz
Manufacturer Panorama Antennas Ltd
Cables
Connector Type FME
Brand Panorama Antennas Ltd
MPN GPS2D4-6-60-Q
Unit Count 1 Units
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Panorama Antennas GPS[X]D4[X]-6-60 | 4�4 MiMo 4G/5G Sharkfin Antenna - Range - VHF, UHF - 617 MHz to 960 MHz, 1427 MHz to 6000 MHz - 26 dB - Cellular Network, GPS, GLONASS, Wireless Data Network - Black - Stud Mount, Panel/Whip Mount, Magnetic Mount, Whip - Omni-directional - SMA, FME Connector
