The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2�2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2�2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
- Designed to operate at 617MHz - 960MHz operating frequency range
- Designed for vehicle
- Operates at 26 dB gain
- Receive signals from multiple directions with this omnidirectional antenna
- Antenna can be mounted as dash mount
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Gain (Isotropic) | 9 dBi |
| Antenna Gain | 26 dB |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Glass Mount |
| General Features | |
|---|---|
| Operating Frequency Range | 4900MHz - 6000MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |

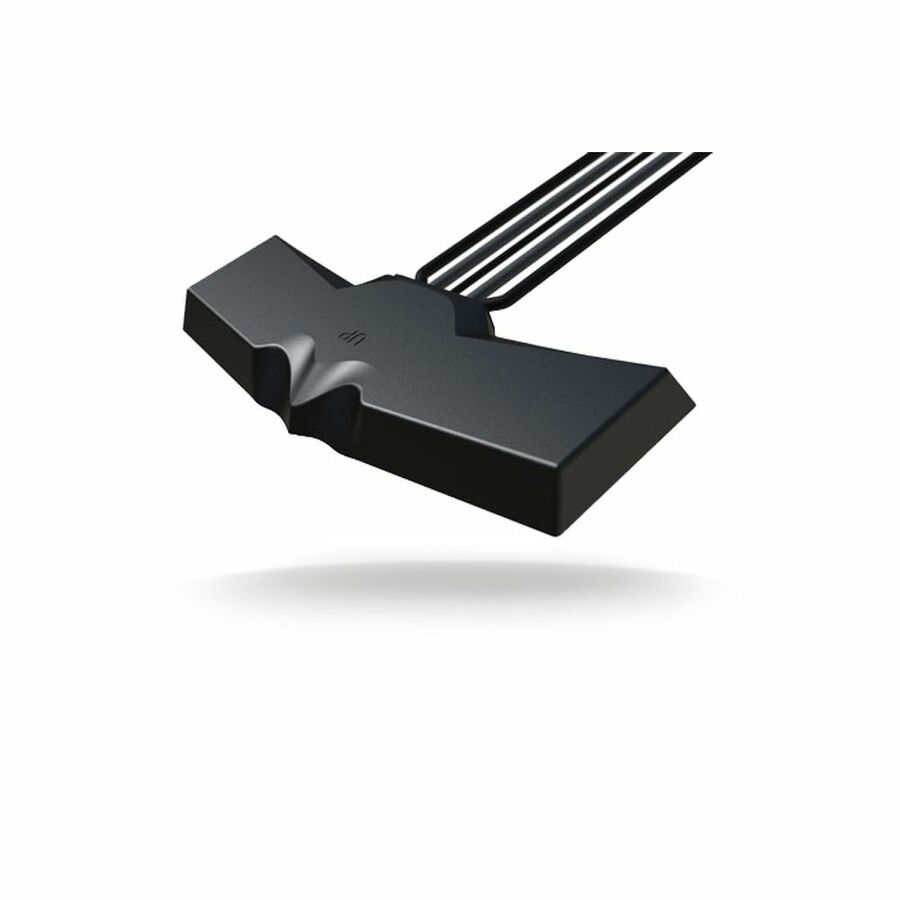

Panorama Antennas BATGM Antenna - 617MHz - 960MHz, 1710MHz - 2170MHz, 2500MHz - 3800MHz, 4900MHz - 6000MHz - 26 dB - 9 dBi - Vehicle, Cellular Network, GPS - Black - Dash Mount, Vehicle Mount, Glass Mount - Omni-directional - SMA Connector
