The GPSC-7-27 range of telematics antennas offers a "2-in-2" product for vehicle communications and telematics. The housing incorporates antennas for cellular/LTE and GPS/GLONASS with a 26dB gain LNA.
Meeting the requirements of UNECE regulation R 118, the antenna is suitable for use in the M3 category of vehicles (transportation). The antenna housing is UV resistant, while the 3m length integrated coax cables are flame retardant, low smoke specification.
The antenna offers easy and quick installation on/under the dashboard or on the windshield using the supplied acrylic adhesive pad (performance may change depending on mounting position/surface and the product should not be mounted on conductive surfaces or metalized glass).
- Suitable for M3 category Vehicles (UNECE Reg 118)
- Available with SMA or FAKRA connectors
- Dashboard or Windshield Mount
- Cellular/LTE and GPS/GNSS
| Brand | |
|---|---|
| Brand | Panorama Antennas Ltd |
| Networking & Connectivity | |
|---|---|
| Antenna Gain (Isotropic) | 4 dBi |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| General Features | |
|---|---|
| Operating Frequency Range | 1710 MHz to 2700 MHz |
| Manufacturer | Panorama Antennas Ltd |
| Cables | |
|---|---|
| Connector Type | SMA |
| Miscellaneous | |
|---|---|
| Product Name | 4G LTE and GPS In-Vehicle Antenna |

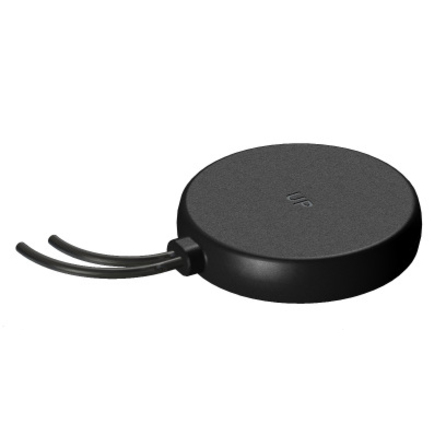

Panorama Antennas 4G LTE and GPS In-Vehicle Antenna - 698 MHz to 960 MHz, 1562 MHz to 1612 MHz, 1710 MHz to 2700 MHz - 4 dBi - Cellular Network, Vehicle, GPS - Black - Omni-directional - SMA Connector
