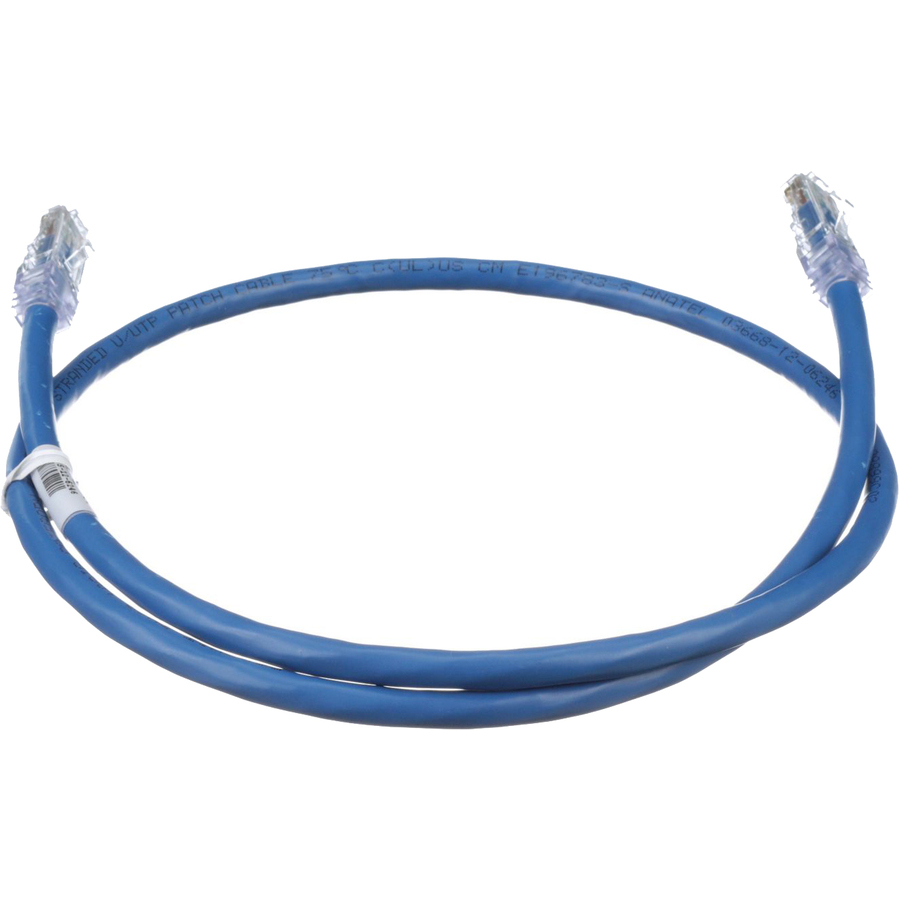

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 15 feet and available in red.
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
- Center de-embedded plug : Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager : Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch : Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot : Provides easy access in high-density applications
- Robust construction : Rated to 2500 mating cycles
- Identification : Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths : Meets individual
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Appearance | |
|---|---|
| Boot Color | Clear |
| General Features | |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cable Length | 15 ft |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Contact Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CM |
| Shielding | No |
| American Wire Gauge | 24 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
