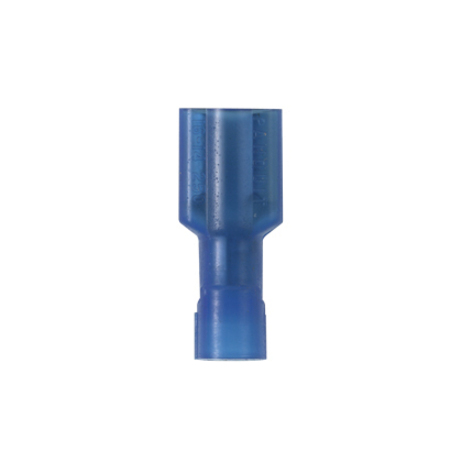

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
- Built for versatility, terminal connectors support multiple wire sizes and configurations for flexible installations
- Tin plating provides smooth surface finish, reducing contact resistance for efficient signal and power transmission
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Size / Dimensions | |
|---|---|
| Diameter | 0.2" |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Connector Type | Terminal - Female |
| Connector Details | 1 x Terminal Female |
| Connector Plating | Tin |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
