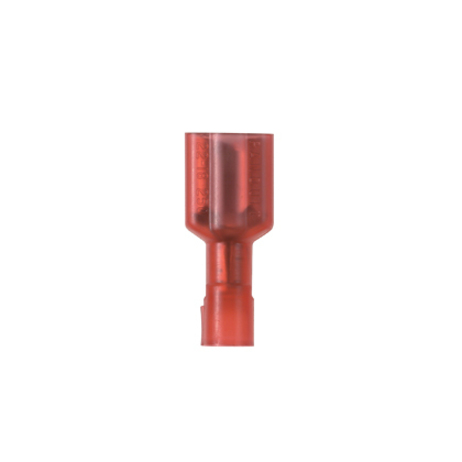

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
- Terminal connectors enable secure wire terminations for control circuits, ensuring reliable performance in electrical systems
- Built for durability, tin plating prevents oxidation and maintains stable conductivity in low-voltage applications
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Connector Type | Quick Disconnect |
| Connector Details | 1 x Quick Disconnect |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
