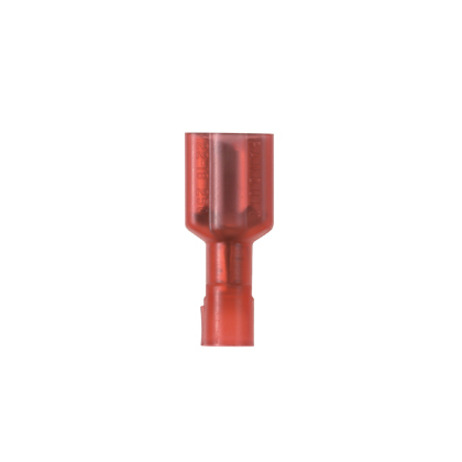

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
- Terminal connectors provide corrosion resistance and high tensile strength, delivering long-lasting connectivity
- Tin contact plating provides smooth finish, reducing contact resistance for efficient signal transmission
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Connector Type | Quick Disconnect |
| Connector Details | 1 x Quick Disconnect |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | PANDUIT CORP |
| UPC/GTIN | 074983521692 |
| MPN | DNF18-250FIB-C |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
