The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| Backup/Run Time With External | 14.10 Minute |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 70 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| EPO Port | Yes |
| Receptacle Detail | 4 x NEMA 5-20R |
| Receptacle Type | NEMA L5-30R |
| Plug/Connector Type | NEMA L5-30P |
| Battery Life | 5 Year |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Number of Batteries | 6 |
| Typical Battery Recharge Time | 6 Hour |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Load Capacity (Watt) | 3000 W |
| Load Capacity (VA) | 3000 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 72 V DC |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail Mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Yes |
| Manufacturer | PANDUIT CORP |
| Thermal Dissipation | 234.75 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
| Miscellaneous | |
|---|---|

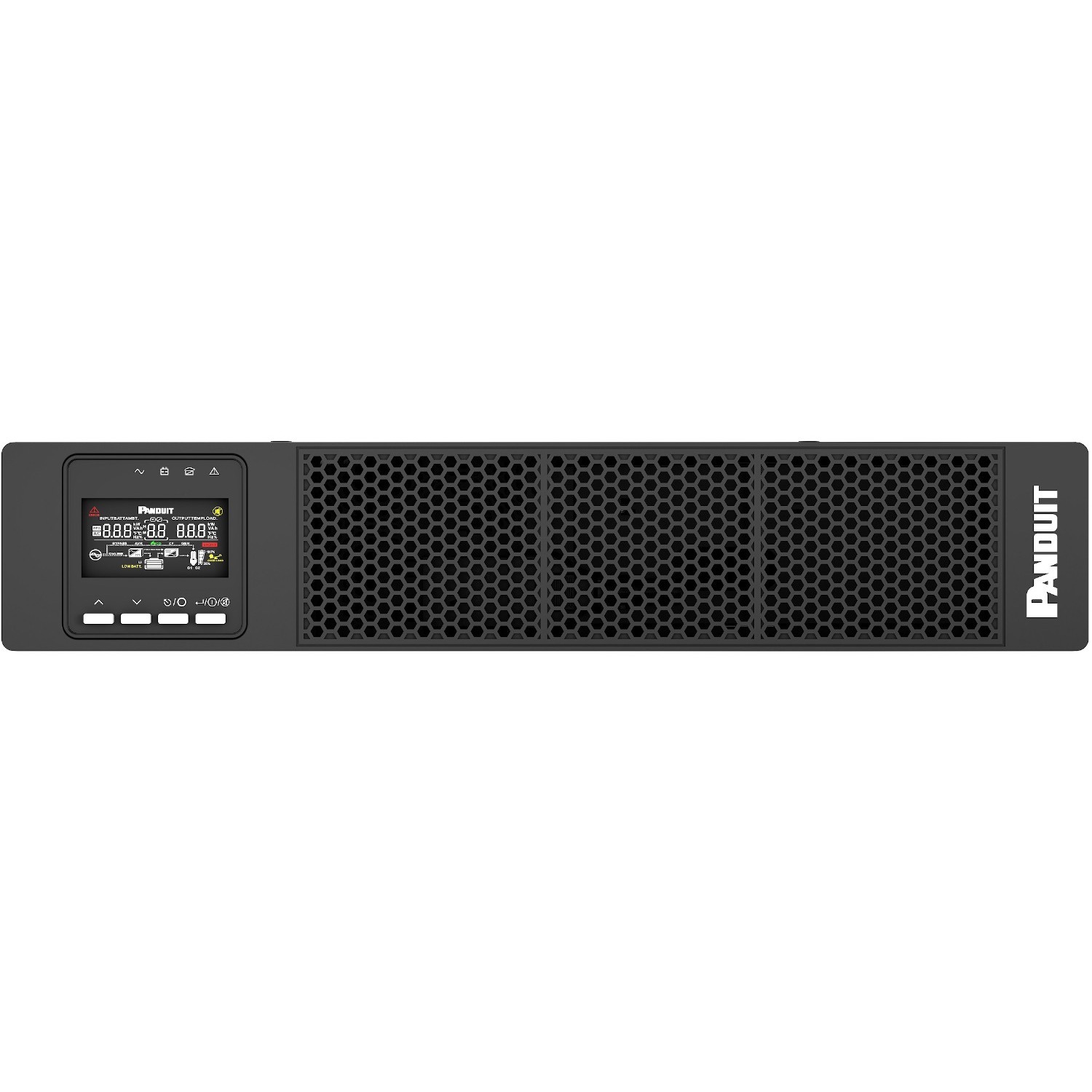

| Product Name | SmartZone U03N11V 3000VA Rack/Tower UPS |
