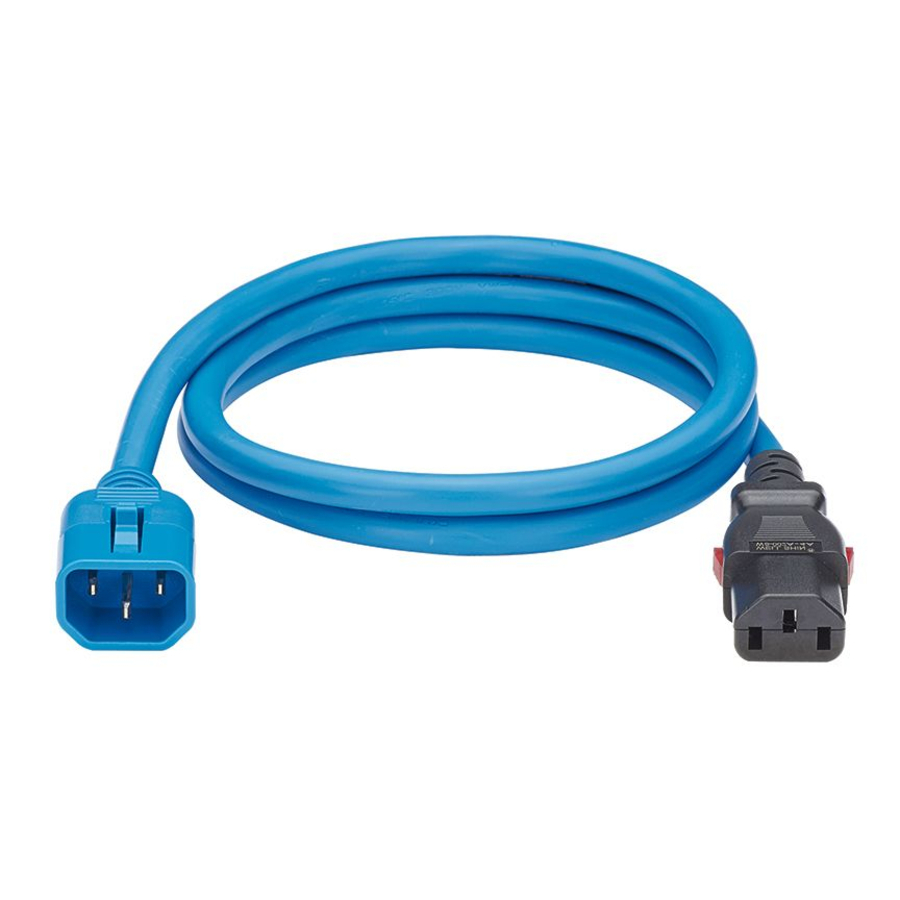

Our wide assortment of heavy-duty locking and standard power cords are a best in class offer; designed for transferring power from the rack power distribution unit (PDU) to active gear in a data center cabinet or rack. They are available in a variety of colors & lengths. The dual locking cords eliminate accidental disconnects caused by vibration and/ or contact. In addition, they feature locking on both ends, G5 PDU side & IT Gear side; for a secure connection.
- Selection of configurations: Variety of configurations are available to meet multiple application environments
- Selection of colors Cords: available in Red, Blue, Black, Yellow & Gray
- Non-conforming packaging: Prevents cord deformity from bound packaging methods
- Selection of lengths: Allows user to optimize cable management to reduce slack and improve thermal performance
- Universal Female Locking Connector: Compatible with all standard IT gear input plugs
- Dual-Ended Locking: Cord locks on both ends, G5 PDUs & IT Gear side. G5 PDU side is also V-Lock Compatible
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| Current Rating | 10 A |
| Voltage Rating | 250 V AC |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cord Length | 4 ft |
| First End Connector Type | IEC 60320 C13 |
| First End Connector Detail | 1 x 3-pin IEC 60320 C13 Female |
| Second End Connector Type | IEC 60320 C14 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C14 Male |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
