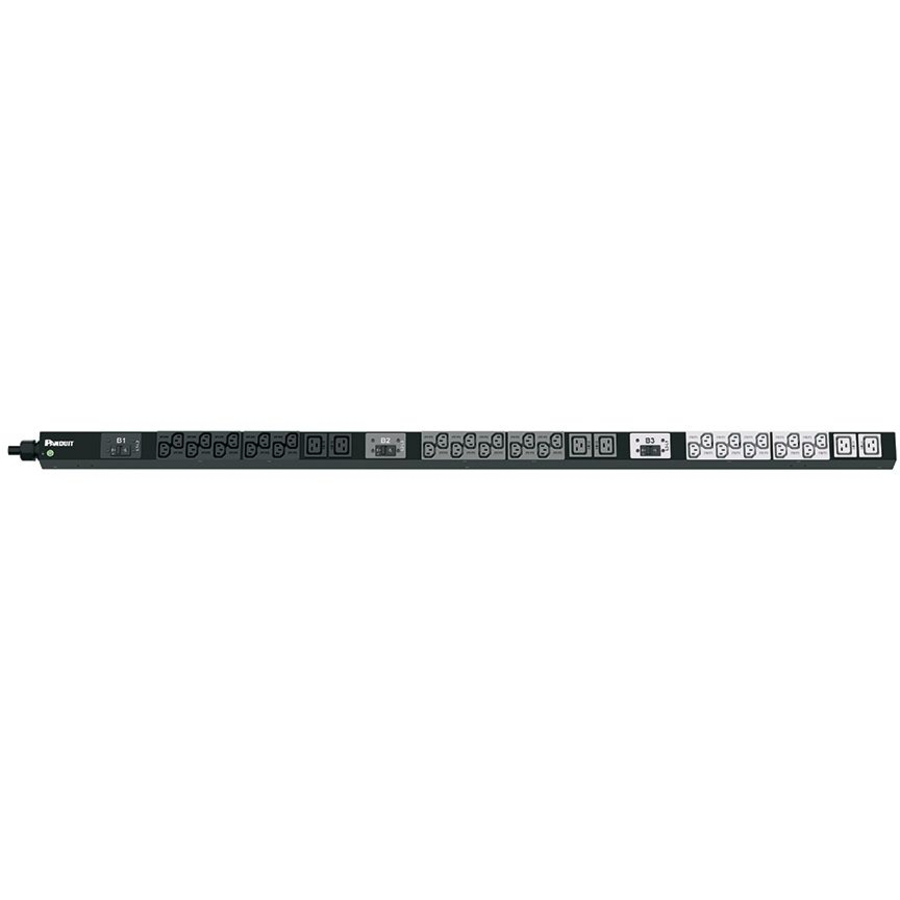

Panduit P36B22M Vertical Basic Power Distribution Unit

$ 809.99 $ 809.99
$ 809.99

$ 809.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Protection Type
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Power Rating (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).

These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.

  • With PDUs decisions for load balancing and minimizing extra cost can be managed
  • With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • Three Phase phase PDU for reliable performance with maximum productivity
  • NEMA L15-30P plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for better reliance and maximum usability
Brand
Brand PANDUIT CORP
Power & Battery
PDU Type Basic
Remote Outlet Switching No
Phase Three Phase
Receptacle Detail 6 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L15-30P
Input Voltage 230 V AC
Output Voltage 208 V AC
Output Voltage Range 120 V AC - 240 V AC
Input Current 30 A
Power Rating (VA) 8600 VA
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Double Pole
Manufacturer PANDUIT CORP
Compliance & Certification
Environmentally Friendly Yes
