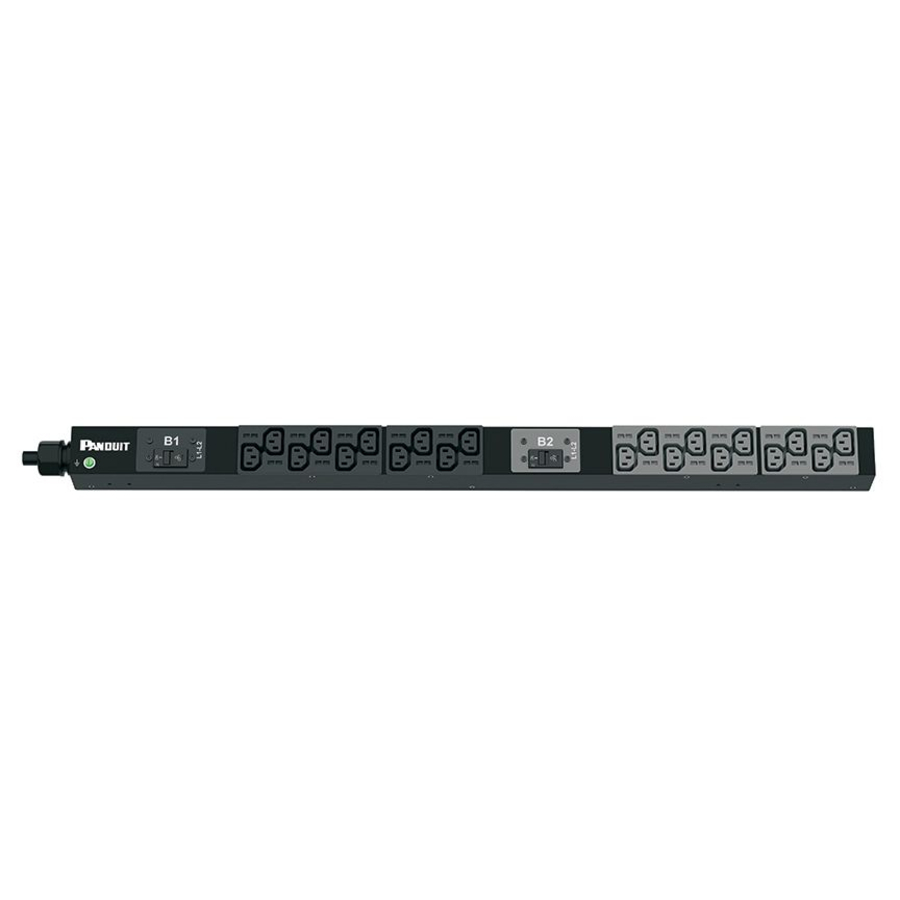

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- PDU improves efficiency, uptime and growth of data centers
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
- 208 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Remote Outlet Switching | No |
| Phase | Single Phase |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 5000 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| General Features | |
|---|---|
| Protection Type | Double Pole |
| Manufacturer | PANDUIT CORP |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | PANDUIT CORP |
| UPC/GTIN | 613056263550 |
| MPN | P20B16M |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
