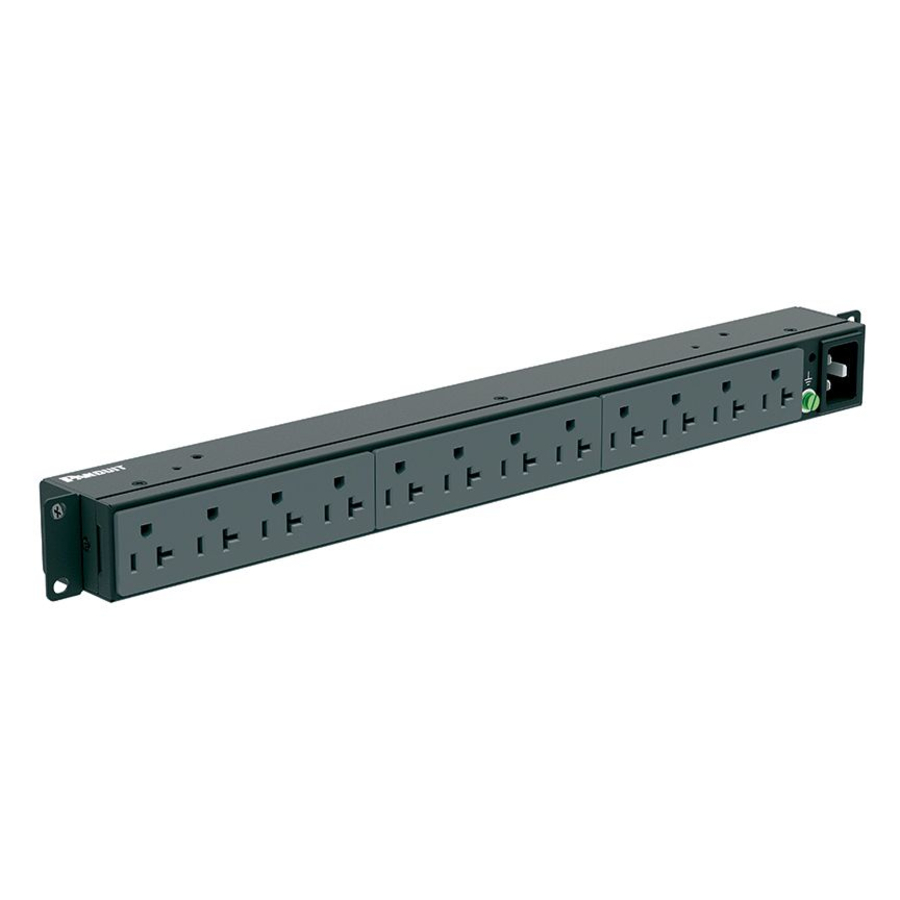

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- PDU improves efficiency, uptime and growth of data centers
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA 5-15P plug/connector type for reliable, productive connectivity and optimal power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Remote Outlet Switching | No |
| Phase | Single Phase |
| Receptacle Detail | 12 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 1400 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | PANDUIT CORP |
| UPC/GTIN | 613056263307 |
| MPN | P12B01M |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
