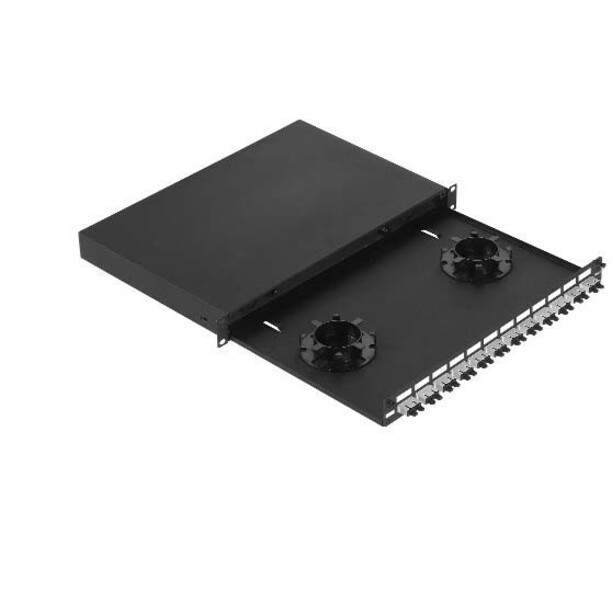

Pre-loaded fibre drawers provide a pre-configured, ready-to-install system for managing fibre optic terminations, connections and patching in a 1 RU rack mount enclosure. The pre-loaded enclosure accommodates both field termination and field splicing, and supports trunk cable entry via PG style glands, blown fibre glands and metric knockouts with rubber grommets. The pre-loaded enclosure is a two-piece design with a slide-out drawer for full access to all fibre terminations, easy moves, adds and changes and simple installation. The enclosure has silk-screened white areas adjacent to each adapter for individual fibre channel labelling and a similar silk-screen area for overall enclosure labelling. The enclosure has integral mounting brackets suitable for installation in any 19" wide EIA-310/IEC 60297 compatible rack or cabinet.
- Silk-screened white labelling areas for individual fibre channel identification plus overall enclosure labelling
- Simple and economical installation with no loose components to misplace; improved protection over plastic fibre drawers
- Trunk and interconnect cable entry via PG11 glands, 5mm blown fibre glands, 20mm knockouts or 30mm rubber grommets
- Supports both field termination via pot-and-polish or Panduit TM Opticam TM Connectors or field splicing (fusion or mechanical) with appropriate slack storage and cable management provisions
- Slides forward a full 300mm for service access to all fibre terminations, connections and splices
- Factory configured with duplex SC, LC or E-2000 adapters for fast and easy cabling and installation
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Misc Ports | |
|---|---|
| Total Number of Ports | 12 |
| Number of LC Ports | 12 |
| LC Port Type | Duplex |
