The Mini-Com® Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed G-Violet on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
- Integrated panel retention clips: No metal clips to become bent, damaged or lost; simplex adapter clips automatically adjust for FOCIS-10 compliant panel thickness variations for improved mounting
- Superior weld strength: Provides a more durable product under stress for improved reliability and increased life
- Short flange design: Improved modularity and higher density usage
- Adapters available in Mini-Com Modules: System flexibility; modules are interchangeable within Mini-Com Outlets, Boxes, and Patch Panels

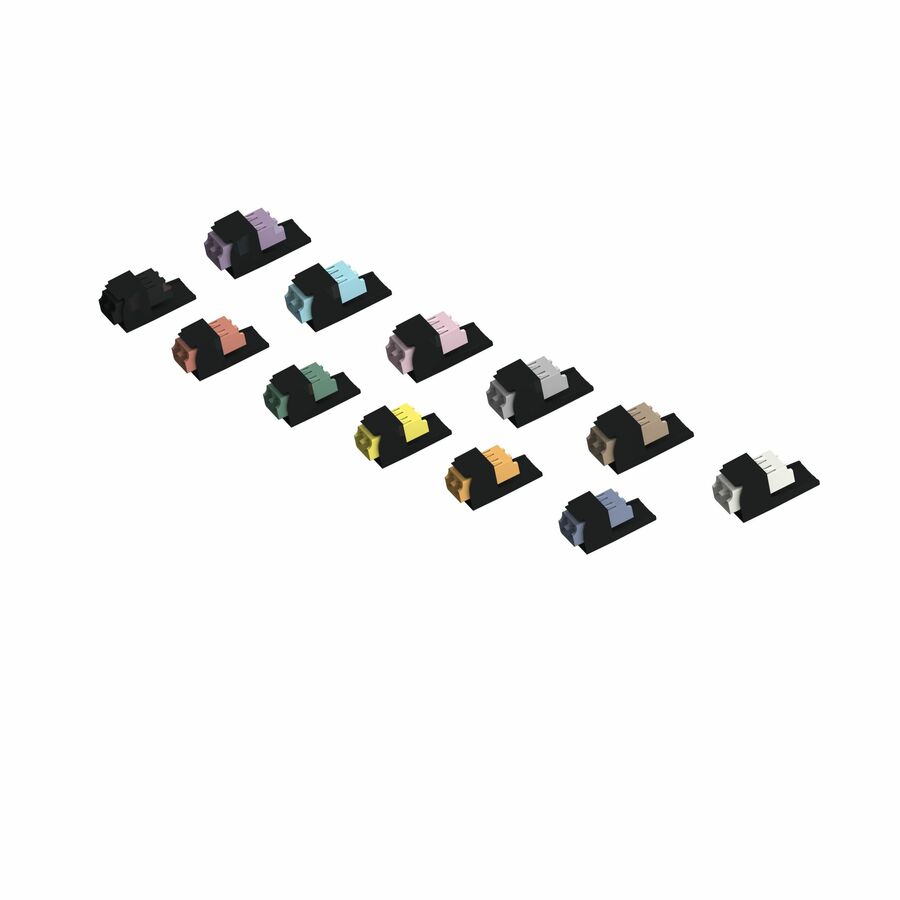

- Modules available in multiple colors: Allows color-coding for network segregation. Available in Keyed to Keyed, Keyed to Non-keyed and Standard (non-keyed to non-keyed). See page 2 for matrix and selection information.
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Appearance | |
|---|---|
| Sleeve Material | Zirconia Ceramic |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Connector Type on First End | LC Network |
| Connector on First End Details | 2 x LC Network - Female |
| Connector Gender on First End | Female |
| Connector Type on Second End | LC Network |
| Connector Gender on Second End | Female |
| Miscellaneous | |
|---|---|
| Adapter Type | Fiber Optic |
