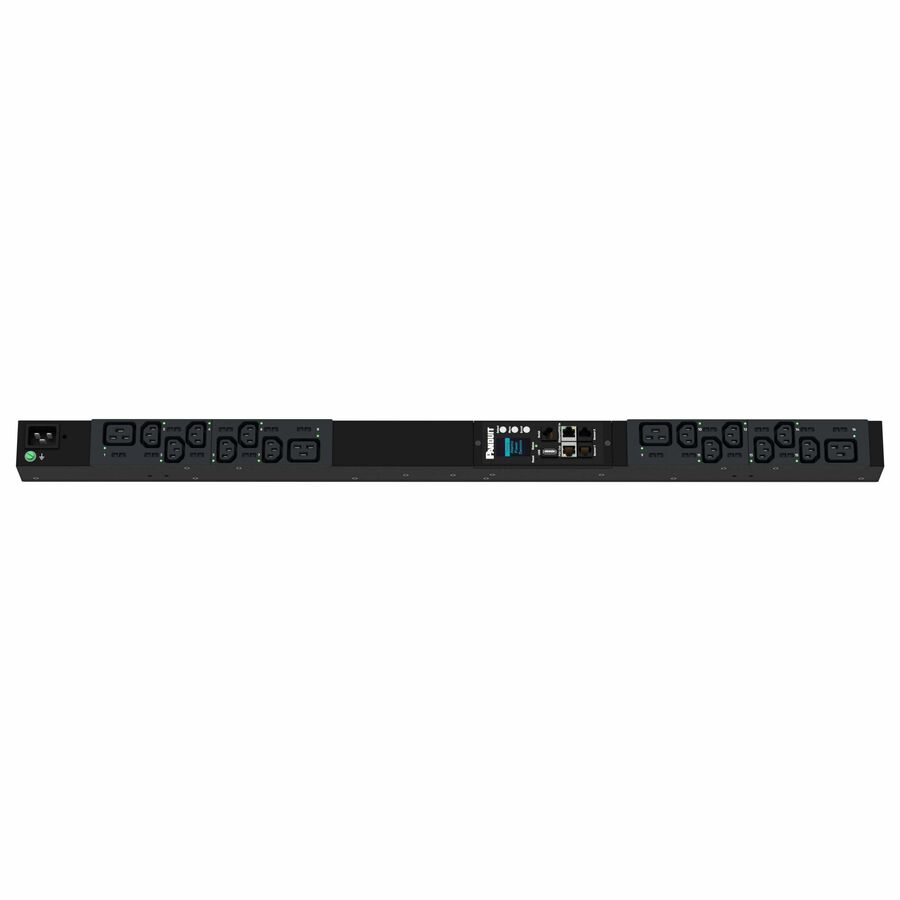

The Panduit G6 Monitored Switched PDU features (12 )C13 and (4 )C19 outlets. It is a 20 amp, 208 V, single phase PDU with a NEMA L6-20P input plug and a 10 foot (3m) power cord. The PDU is black.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Before critical input source become overloaded always be warned with monitored PDUs
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L6-20P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for better reliance and maximum dependability
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| Number of Circuit Breakers | 0 |
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L6-20P |
| Locking Receptacles | IEC 60320 C19 |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Input Current | 20 A |
| Load Capacity (VA) | 3300 W |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Vertical |
| Mount Type | Cabinet-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| UL Listed | Yes |
| Brand | PANDUIT CORP |
| MPN | P16E24G |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
