Panduit G6 MPO PDU, 30AMP, (30)C13, (6)C19, NEMA L6-30P

$ 3,664.99 $ 3,664.99
$ 3,664.99

$ 3,664.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Voltage Measurement Accuracy
  • Number of Circuit Breakers
  • Power Measurement Accuracy
  • Current Measurement Accuracy
  • PDU Type
  • Phase
  • Input Frequency
  • Features
  • Circuit Breaker
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Load Capacity (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

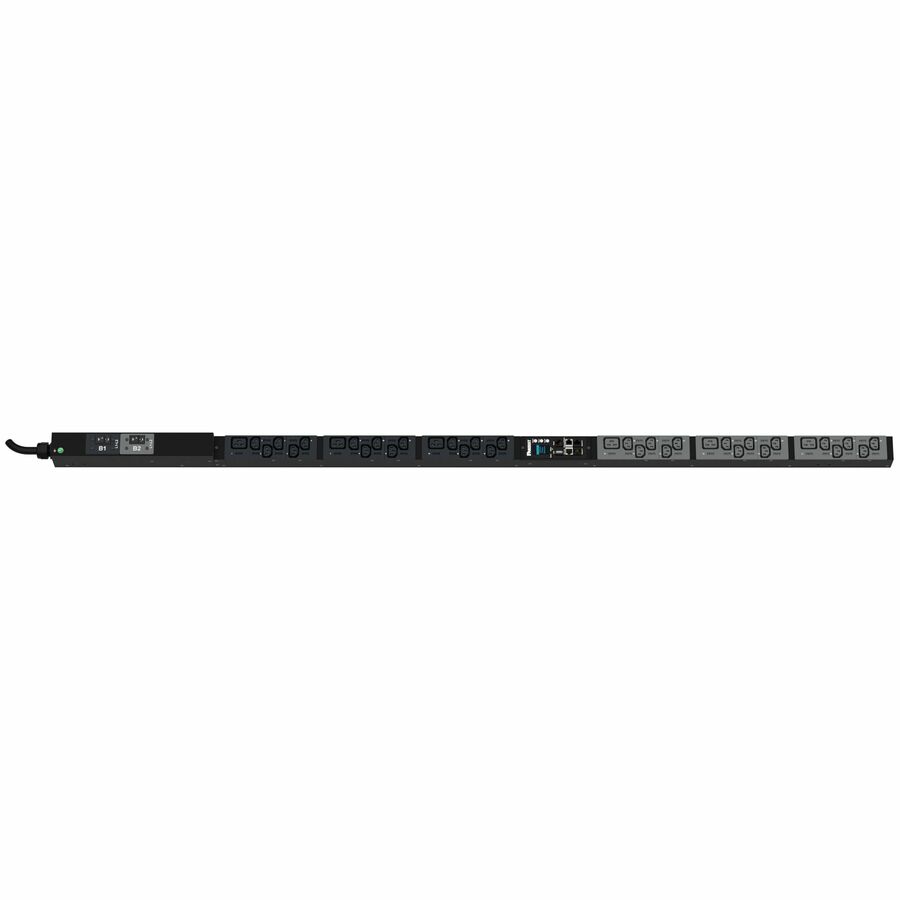

The Panduit G6 Monitored Per Outlet PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.

  • Provide circuit protection and easy configuration for trouble-free access
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU provides optimal power output with added usability
  • NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for maximum dependability and added productivity
Brand
Brand PANDUIT CORP
Power & Battery
Number of Circuit Breakers 2
Power Measurement Accuracy ±1%
Current Measurement Accuracy ±1%
PDU Type Monitored
Phase Single Phase
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 6 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L6-30P
Input Voltage Range 100 V AC - 240 V AC
Input Voltage 208 V AC
Output Voltage 208 V AC
Output Voltage Range 120 V AC - 240 V AC
Input Current 30 A
Load Capacity (VA) 5000 W
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Vertical
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Manufacturer PANDUIT CORP
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 50°F (10°C)
Maximum Storage Temperature 140°F (60°C)
Minimum Storage Temperature -4°F (-20°C)
UL Listed Yes
Miscellaneous
Voltage Measurement Accuracy ±1%
