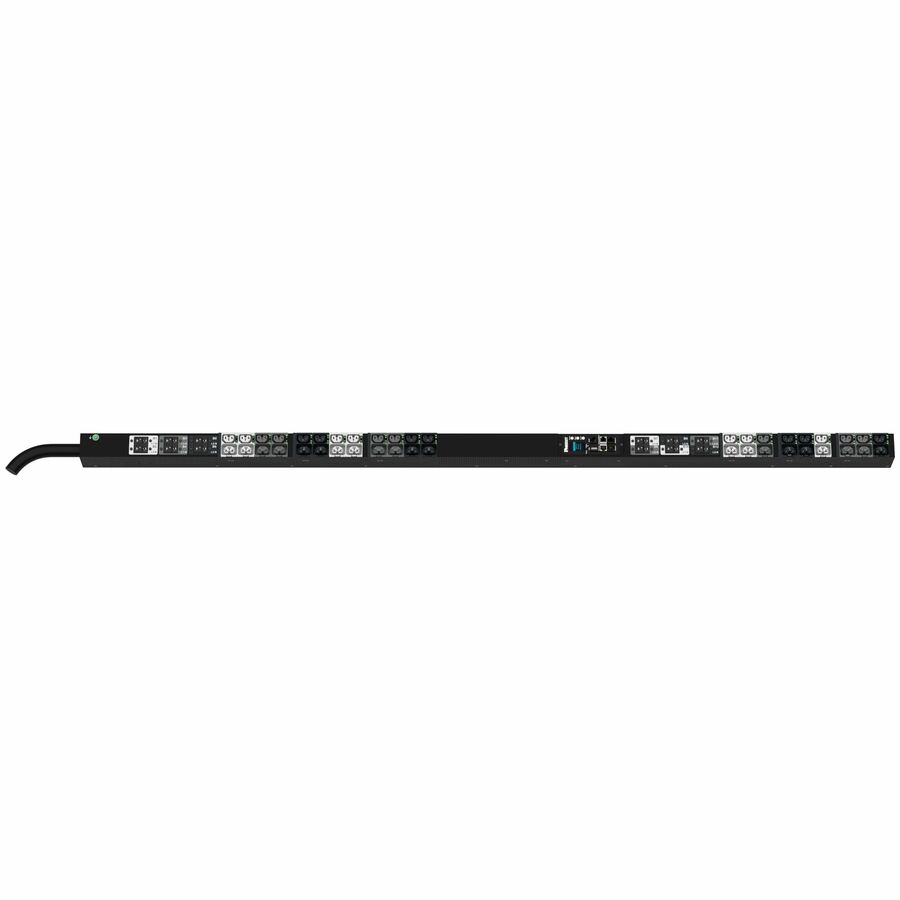

Take control with our G6 Intelligent PDU offering. Manage power at the outlet level, reboot equipment remotely, and prevent unauthorized use, ensuring your data center runs smoothly.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With a built-in digital current meter avoid potential overloads via switched PDUs
- IEC 60320 C13/C15 receptacle type to ensure maximum productivity with added feasibility
- Three Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 3P+N+E 6h 60/63A (IP44) plug/connector type for reliable, productive connectivity and optimal power output
- 415 V AC input voltage for better reliance and maximum dependability
- 240 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21 |
| Receptacle Type | IEC 60320 C13/C15/C19/C21 |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 60/63A (IP44) |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Input Current | 63 A |
| Load Capacity (Watt) | 43.50 kW |
| Load Capacity (VA) | 43.60 kW |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| UL Listed | Yes |
