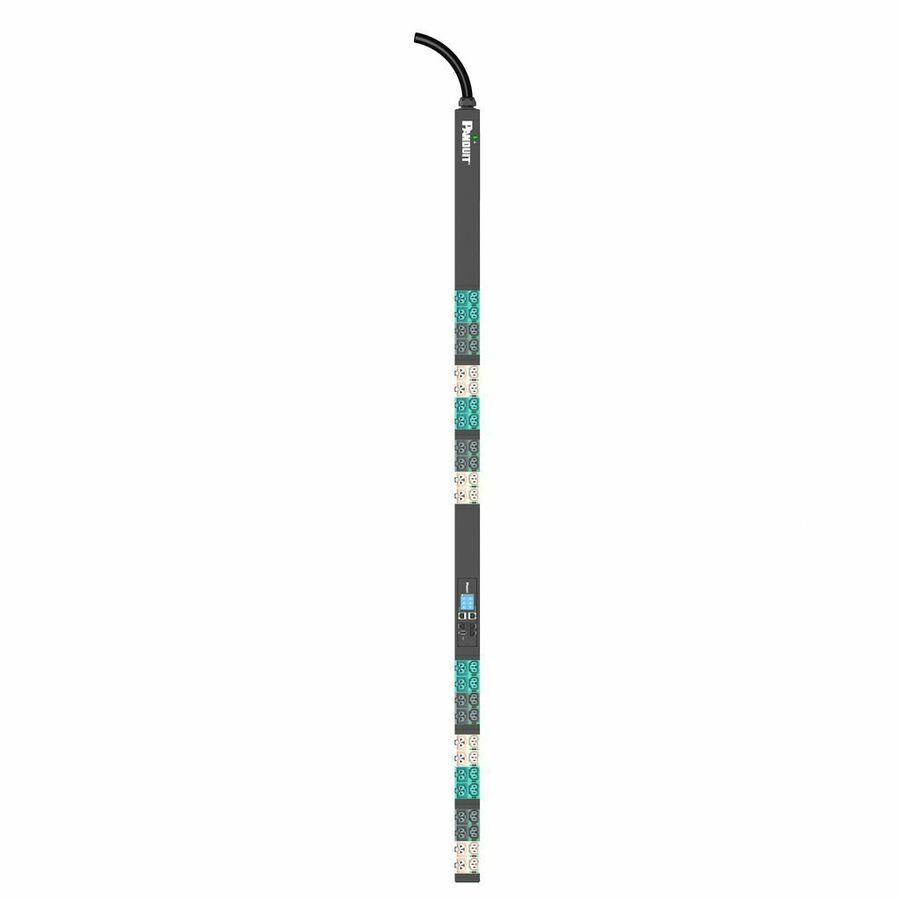

Panduit EL2P MS PDU, 20/16 AMP, 3 PH , 48 OUTLETS

$ 2,804.99 $ 2,804.99
$ 2,804.99

$ 2,804.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Voltage Measurement Accuracy
  • Network Monitoring Port Detail
  • Power Measurement Accuracy
  • Current Measurement Accuracy
  • PDU Type
  • Phase
  • Features
  • Circuit Breaker
  • Cord Length
  • Plug/Connector Type
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Finishing
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Output Voltage
  • Input Current
  • Environmentally Friendly
  • Environmental Certification
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
  • Power Rating (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • PDU distributes AC power to multiple servers and balances the load on the servers
  • Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
  • Three Phase phase PDU for reliable performance with maximum productivity
  • IEC 60309 3P+N+E 6h 20A/16A (IP44) plug/connector type for efficient connectivity and feasible power output
  • 240 V AC output voltage for better reliance and maximum usability
Brand
Brand PANDUIT CORP
Power & Battery
Power Measurement Accuracy ±1%
Current Measurement Accuracy ±1%
PDU Type Switched
Phase Three Phase
Circuit Breaker No
Plug/Connector Type IEC 60309 3P+N+E 6h 20A/16A (IP44)
Output Voltage 240 V AC
Input Current 20 A
Power Rating (VA) 11500 VA
Networking & Connectivity
Network Monitoring Port Detail Gigabit network port reduces labor by auto negotiating with data center level network switches
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
Appearance
Finishing Powder Coated
General Features
Manufacturer PANDUIT CORP
Cables
Cord Length 9.84 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 50°F (10°C)
Maximum Storage Temperature 140°F (60°C)
Minimum Storage Temperature -4°F (-20°C)
Environmentally Friendly Yes
Environmental Certification China RoHS
Miscellaneous
Voltage Measurement Accuracy ±1%
