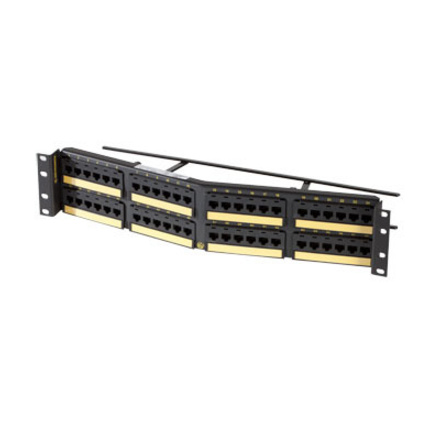

Clarity 6A 48-Port Angled Patch Panel is component compliant to EIA/TIA Category 6a performance requirements. High density design occupies 2 rack units, measuring 19'' x 3.5''. Jacks are grouped in six-port modules. Part of the Clarity 6A link and channel solution that provides significant installed performance headroom.
- High density design: Maximizes rack utilization.
- Angled recessed design with lower mounted profile: Directs cords more easily to vertical management.
- Supplied rear cable management: Supports good cabling practices
- Universally wired 110 termination: Supports T568A and T568B installs.
- CAT6A Compliant: Meets TIA 568C.2 Category 6A component specifications
| Brand | |
|---|---|
| Brand | Legrand Group |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 48 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| Compatible Rack Width | 19" |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Misc Ports | |
|---|---|
| Total Number of Ports | 48 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
