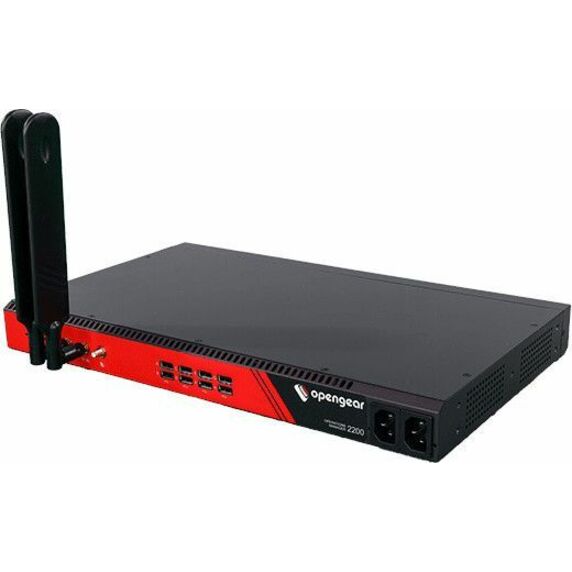

Opengear OM2200 Operations Manager

$ 6,544.99 $ 6,544.99
$ 6,544.99

$ 6,544.99 / Units
  • Brand
  • Processor Manufacturer
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Standard Memory
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • Total Number of Network Ports
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Management Port
  • Plug/Connector Type
  • Serial Port
  • Number of Serial Ports
  • Form Factor
  • Processor Speed
  • Memory Technology
  • Ethernet Technology
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Media Type Supported
  • Input Voltage Range
  • Input Voltage
  • Frequency
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Device Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

Opengear OM appliances combine the capabilities of a SmartOOB™ Console Server with the flexibility of Automation.

The OM2200 Console Server, managed through our Lighthouse Software , is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.

  • 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
  • x86 platform supporting Docker and Python
  • Smart OOB includes automated port discovery and VLAN support on the OM appliances
  • All appliances now ship with two C14 power cables standard
Brand
Brand Opengear
CPU / Processor
Processor Manufacturer AMD
Processor Speed 1.40 GHz
Memory / RAM
Standard Memory 7.81 GB
Memory Technology DDR3 SDRAM
Power & Battery
Plug/Connector Type IEC 60320 C14
Input Voltage Range 100 V AC - 240 V AC
Input Voltage 230 V AC
Networking & Connectivity
Connectivity Technology Wired/Wireless
USB Ports
USB Yes
Number of USB Ports 2
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Total Number of Network Ports 2
Size / Dimensions
Form Factor Rack-mountable
General Features
Frequency 60 Hz
Manufacturer Opengear
Device Type Console Server
Expansion Slots
Total Number of Expansion Slots 2
Expansion Slot Type SFP
Misc Ports
Management Port Yes
Serial Port Yes
Number of Serial Ports 48
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature 41°F (5°C)
