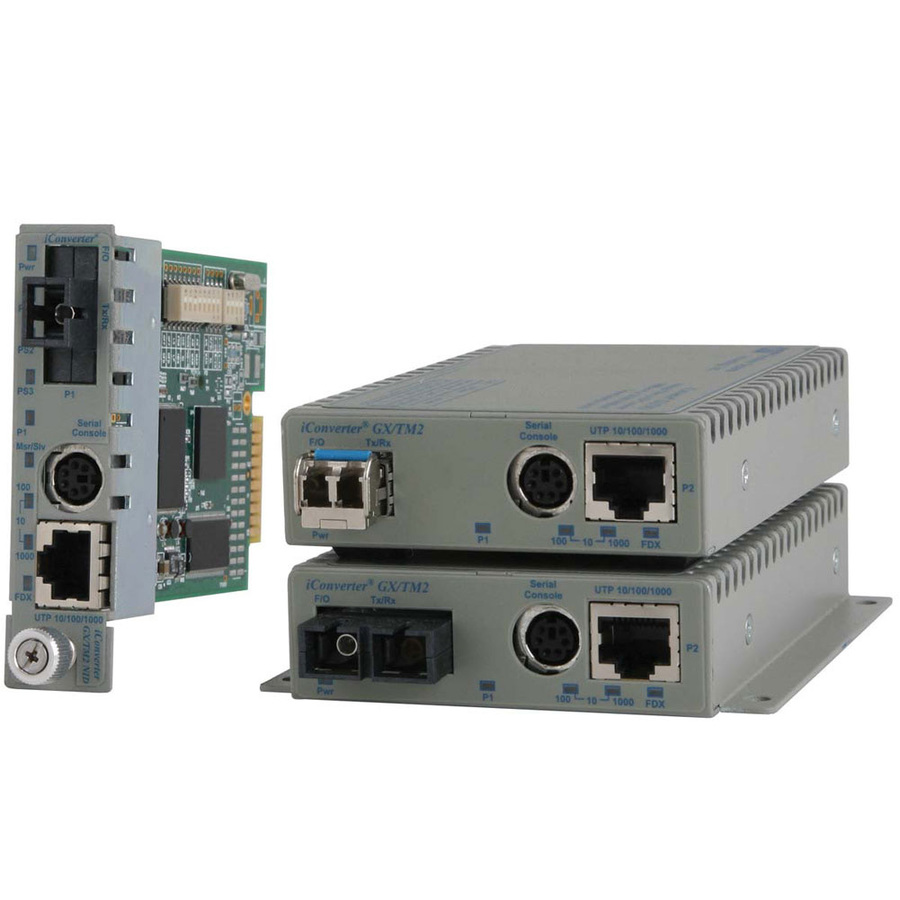

The iConverter GX/TM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The GX/TM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Desktop installation makes it ideal for deployments outside the wiring closet
| Brand | |
|---|---|
| Brand | Omnitron Systems |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 12 km |
| Manufacturer | Omnitron Systems |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 10/100/1000BASE-T UTP to 1000BASE-X Media Converter and Network Interface Device |
Omnitron Systems 10/100/1000BASE-T UTP to 1000BASE-X Media Converter and Network Interface Device - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 12 km - Desktop, Wall Mountable, Rail-mountable, Rack-mountable
